SKU: ECU-1251D

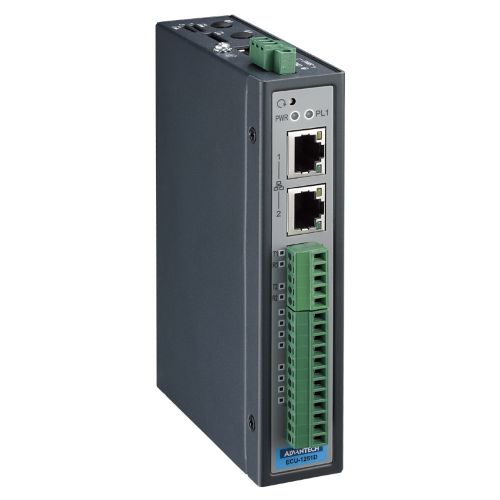

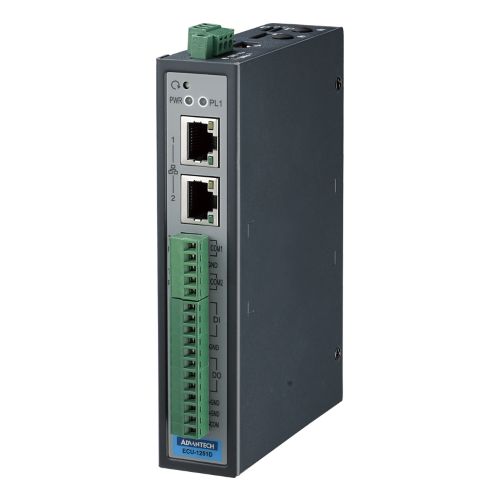

Industrial Communication Gateway with TI Cortex A8, 2 LAN, 2 COM, 4 DI & 4 DO
For facility monitoring, distributed solar power, smart factory sector, especially cloud based applications which require a total wireless and Ethernet communication solutions, Advantech has released the ECU-1251D RISC-based industrial communication gateway. ECU-1251D has an open platform design with Cortex A8 processor, two 10/100 Ethernet ports and operating temperature range of -40~70°C.With Linux operating system and open Edgelink SDK, which enable to system integrators to develop applications which precisely fit their need.
| General Specification | |
|---|---|
| Certification | CE, FCC (No RED certification) |
| Mounting | Wall-Mount/DIN-Rail |
| Power consumption (typical) | 2.5W @ 24VDC |
| Power Requirements | 10 ~ 30 VDC |
| System Specification | |
| CPU | TI Cortex A8, 600MHz |
| Memory | DDR3L 256MB |
| Indicators | LEDs for Power, LAN (LINK, ACT), Programmable |
| Storage | 512MB NAND Flash |
| SD Slot | 1 x Micro-SD slot |
| Watchdog | Yes |
| Real-time Clock | Yes |
| Communication Specification | |
| Serial Port | Serial Port: 2 x RS232/RS485 Isolation optional |
| USB Port | 1 x USB2.0 |
| Serial Port Speed | Up to 230,400 – 115200 bps |
| Ethernet Port | 2 x 10/100 Base-T RJ-45 ports |
| Wireless (Optional) | Interface: 1x Mini-PCIe (Full-size) Type: WiFi/Cellular/4G Digital: USB |
| Communication Protocol Drivers | IEC-60870-5-104 Modbus TCP/RTU MQTT FTP/HTTP/DHCP/TCP/IP |
| PLC Driver Support | 100+ PLC drivers |
| Data Logger | Real-time datalogger |
| Database uplink | ODBC/FTP |
| Programming support | Linux C, Restful API, Web service API, Event Manager |
| Digital Input Specification | |
| Channel | 4 |
| Input Type | Wet Contact Logic 0: 0-4V Logic 1: 10-30V |
| Isolation | 2,000 VDC |
| Digital Output Specification | |
| Channel | 4 |
| Output Type | Open Collector (Sink) |
| Rated Voltage | 10 ~ 30 VDC, 100 mA per channel |
| Isolation | 2,000 VDC |
| Software Specification | |
| OS Support | Linux Kernel 4.0 |
| Configuration Tool | Advantech Edgelink Studio |
| Environment Specification | |
| Operating Temperature | -40~70°C |
| Storage Temperature | -40~85°C |
| Humidity | 5 ~ 95% (non-condensing) |
