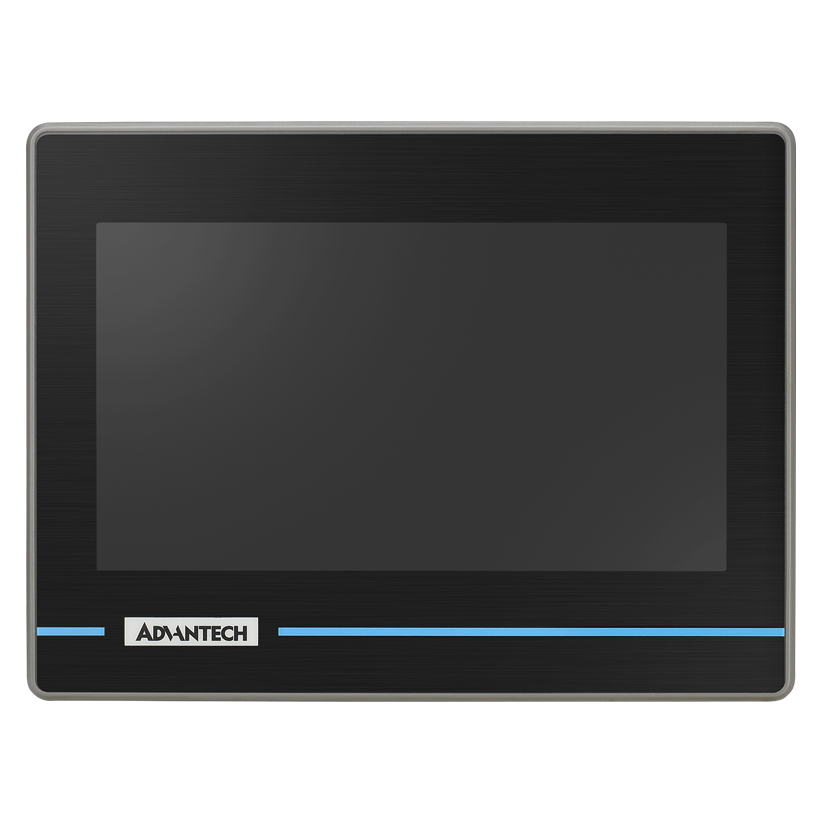

Advantech - WOP-207K HMI

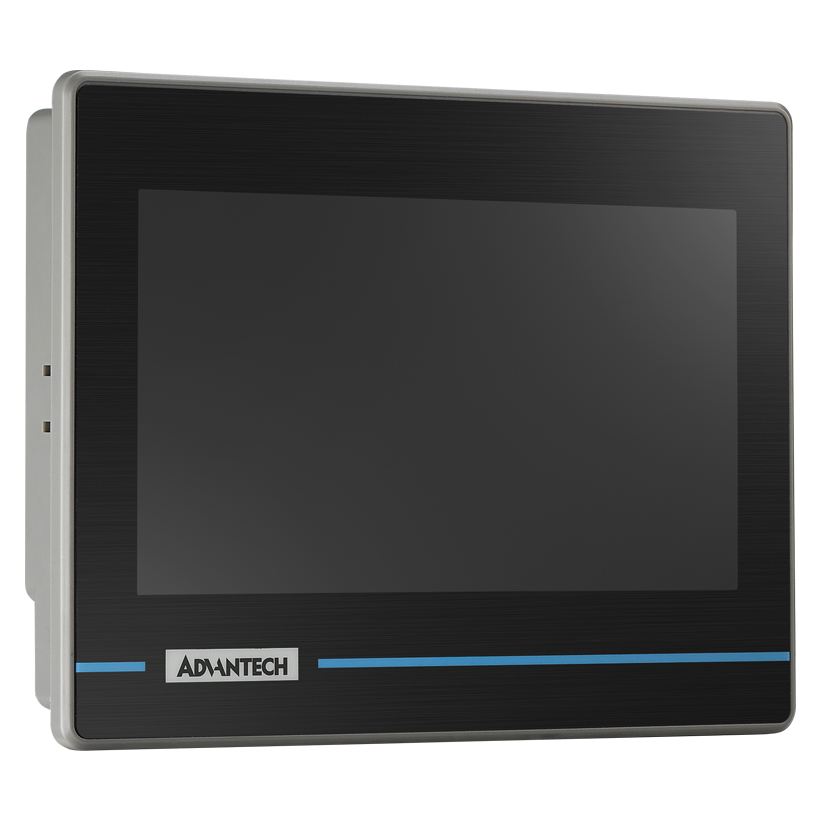

Advantech - WOP-207K HMI - Image 2

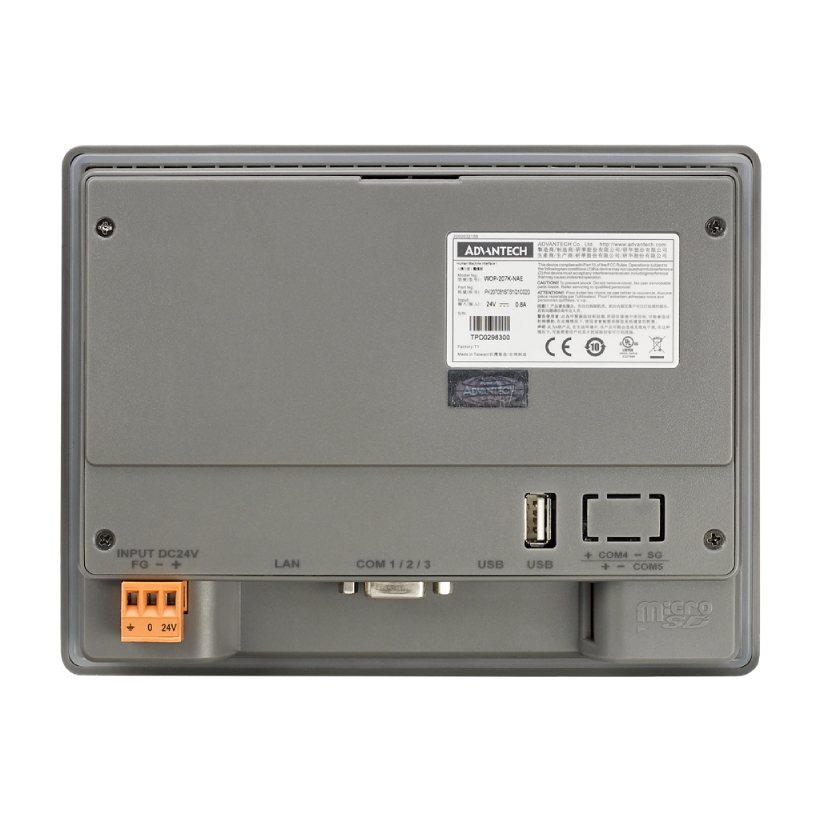

Advantech - WOP-207K HMI - Image 3

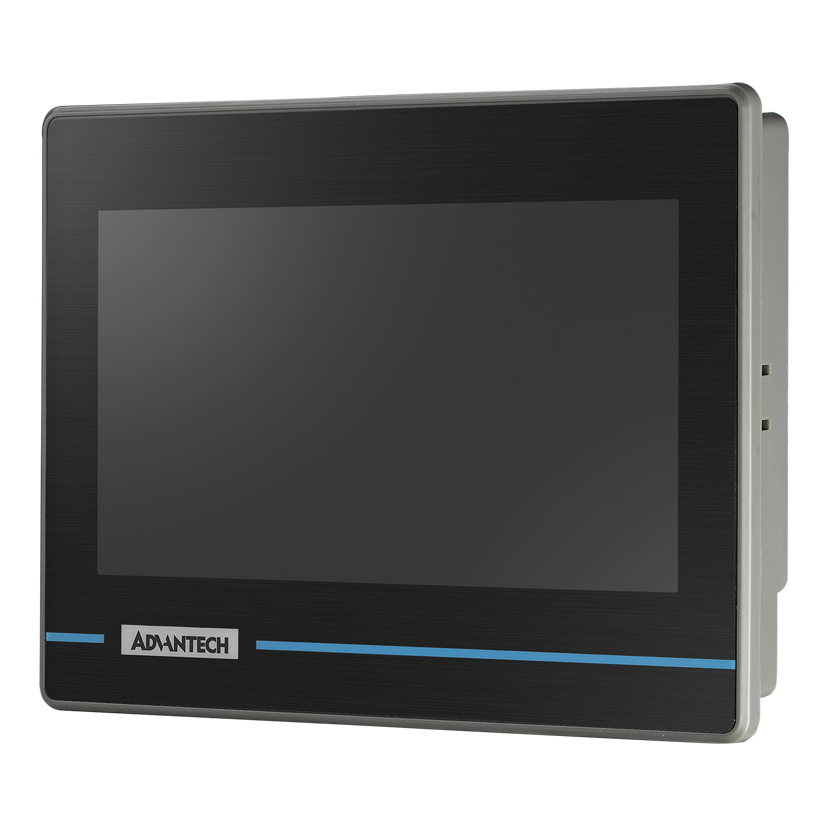

Advantech - WOP-207K HMI - Image 4

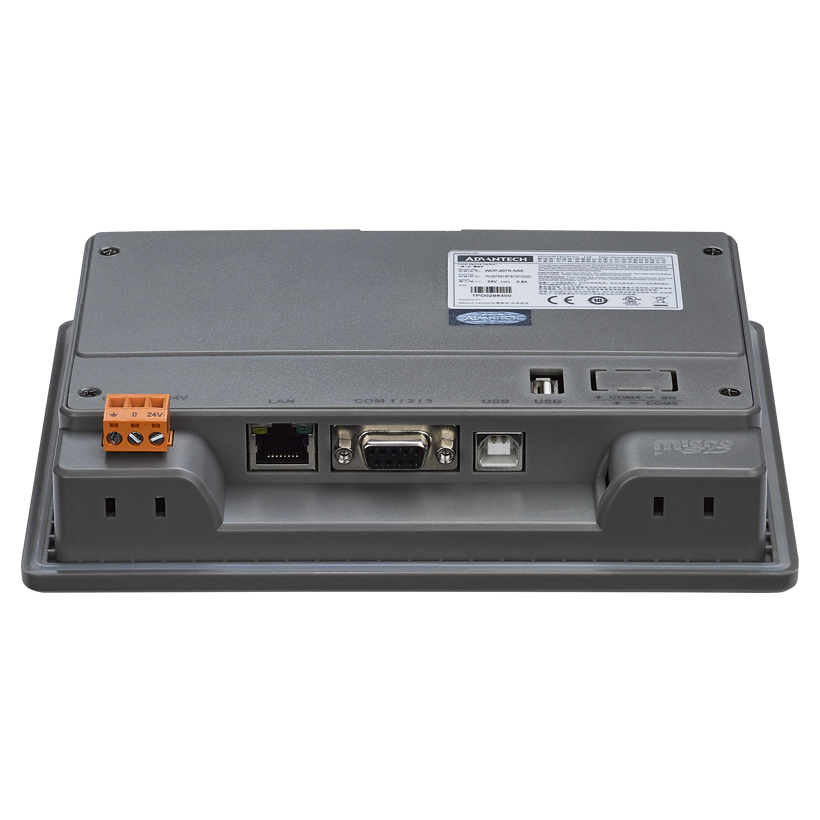

Advantech - WOP-207K HMI - Image 5

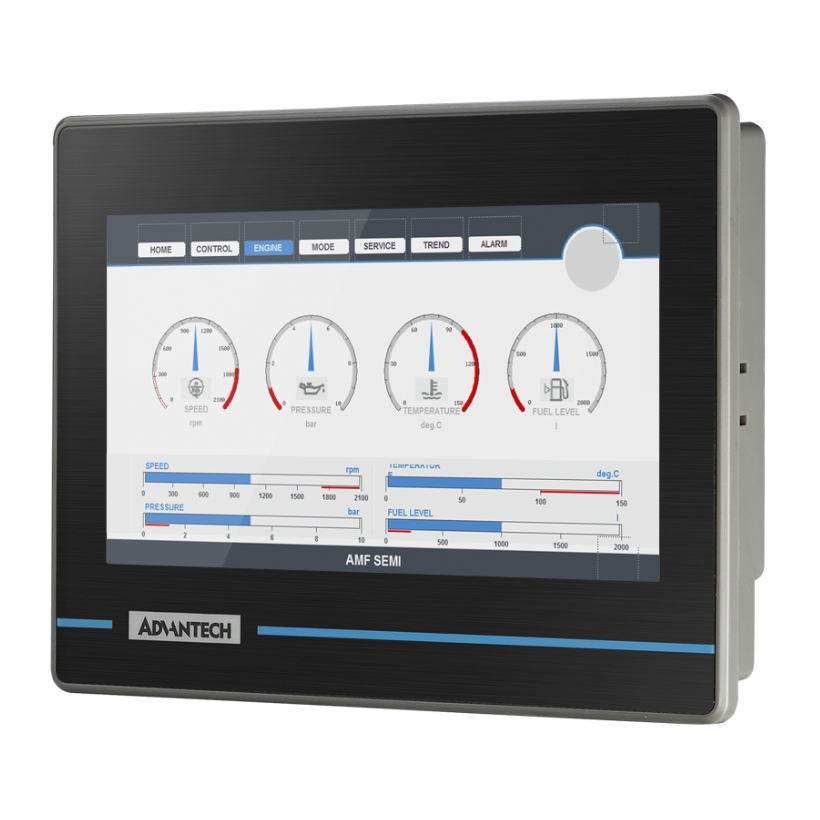

Advantech - WOP-207K HMI - Image 6

Advantech – WOP-207K HMI

SKU: WOP-207K-xxx

7″ WVGA, 64MB, 128MB(NAND), Serialx3, Ethernet

  • ARM9™ 32-bit RISC processor with 64 MB SDRAM working memory
  • Supports over 500+ PLC industrial communication protocols
  • Backup memory 128KB for retaining critical data or parameter
  • Supports the HMINavi Designer development tool free on Windows 10
  • Supports HMINavi Runtime data downloads through Serial, Ethernet, USB port
  • No limitation on the internal I/Os points used for variety application
  • Easy to switch one application to different LCD sizes in seconds
  • Supports operation in both landscape and portrait mode
  • Panel mount design ensures easy installation and IP66-rated front panel
Add to quote
To fulfill the stringent standards of the automation market, especially for packaging, label slitting, and F&B applications, Advantech developed the WOP-200K series for diverse operations that involve PLCs, thermal controllers, inverters, and sensors. Powered by an ARM9™ 32-bit RISC processor with 64 MB working memory, the WOP-200K series systems are available with LCDs of varying size (from 4.3″ to 15″). Additionally, WOP-200K systems are bundled with Advantech’s HMINavi software – a human-machine interface designed for HMI applications to reduce labor and improve manufacturing efficiency through visualization. Powerful connectivity drivers support 500+ variety market brands of PLC.



General Specification
Certification CE, FCC, UL62061
Dimensions (W x H x D) 189.6 x 144.9 x 36mm (7.46″ x 5.70″ x 1.42″)
Cutout Dimensions 175 x 132.5mm (6.89″ x 5.22″)
Front Panel Thickness 6 mm (0.23 in)
Operating System HMI RTOS, HMINavi Designer
Power Supply Voltage 24V +/- 10%, Isolation
Power Consumption 25W
Enclosure Housing Plastic
Mount Options Panel
Weight (Net) 0.55 kg (1.21 lbs)
System Hardware Specification
CPU ARM® 32-bit RISC processor
Battery Backup Memory 128KB
Working Memory 64 MB SDRAM
Storage 128 MB NAND Flash
Runtime Max Size: 64 MB
Data Logger Max Size: 64 MB
Communication Interface Specification
COM1 RS-232 (DB9 Female)
COM2 RS-422/485 (COM1: Pin 1, 4, 5, 6, 9)
COM3 RS-485 (COM1: Pin 5, 7, 8)
Ethernet (RJ45) 10/100 Base-T
I/Os 1 x USB (Client)
1 x USB (Host)
LCD and Touchscreen Specification
Display Type WVGA TFT LCD
Display Size 7″
Max. Resolution 800 x 480
Max. Colors 65,536 colors
Luminance (cd/m²) 400
Backlight Life LED, 20,000 hr
Touchscreen 4-wire analog resistive
Environment Specification
Operating Temperature -15 ~ 65°C (5 ~ 149°F)
Storage Temperature -20 ~ 70°C (-4 ~ 158°F)
Humidity 95% RH @ 40°C, non-condensing
Ingress Protection Front panel: IP65
Vibration Protection 5 ~ 500Hz (X,Y,Z direction, 1Grms, 1hour per axis)
Ordering Information
WOP-207K-NAE 7″ WVGA, 64MB, 128MB(NAND), Serial x3, Ethernet
WOP-207K-SAE 7″ WVGA, 64MB, 128MB(NAND), Serial x3



WOP-207K - Data Sheet
