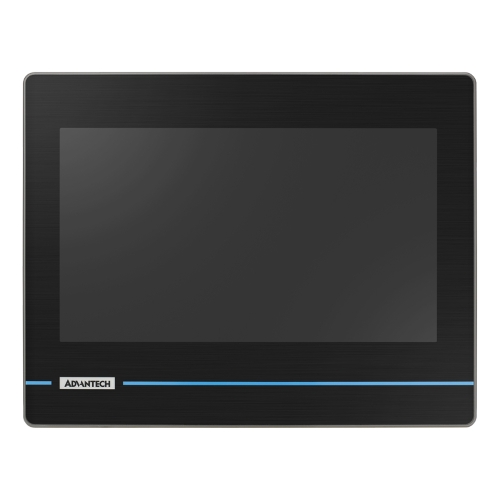

Advantech - WOP-210K HMI

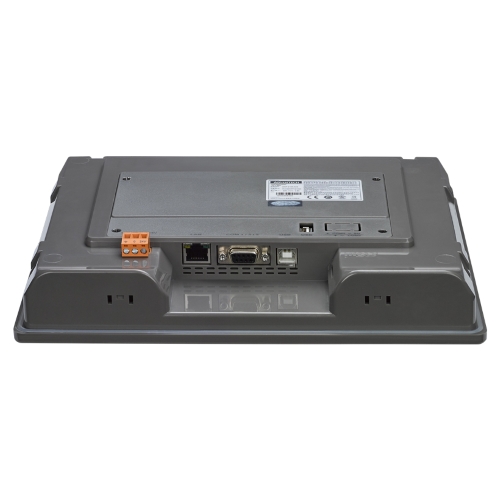

Advantech - WOP-210K HMI - Image 2

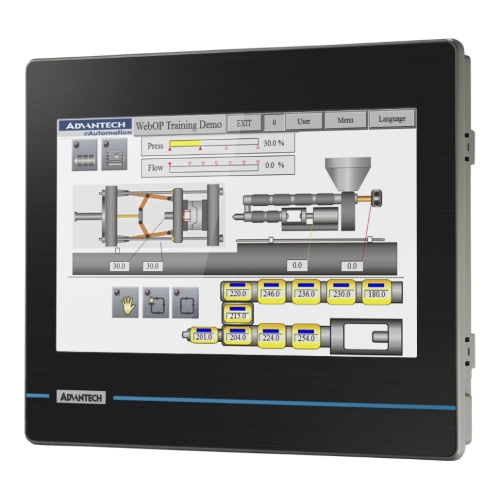

Advantech - WOP-210K HMI - Image 3

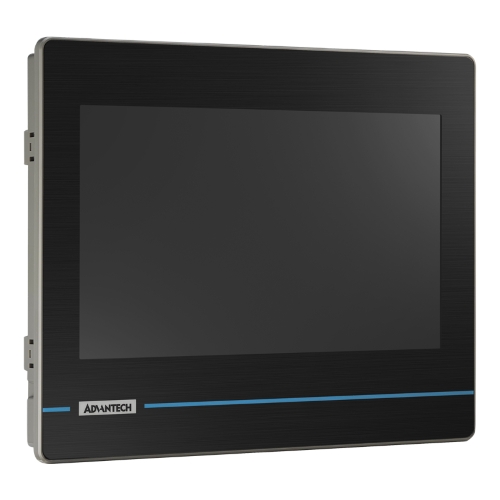

Advantech - WOP-210K HMI - Image 4

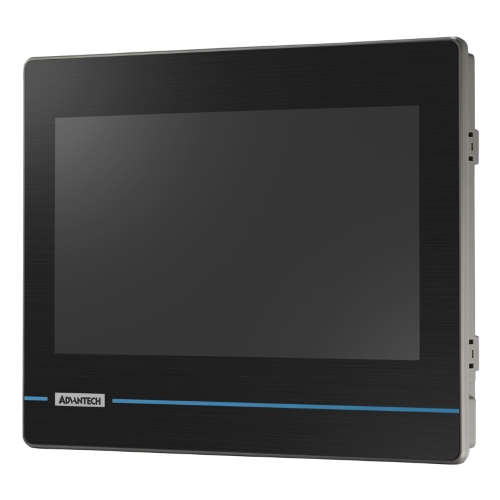

Advantech - WOP-210K HMI - Image 5

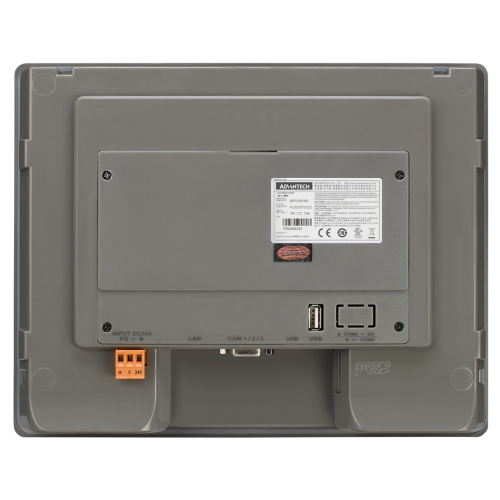

Advantech - WOP-210K HMI - Image 6

Advantech – WOP-210K HMI

SKU: WOP-210K-xxx

10.1″ WSVGA, 64MB, 128MB(NAND), Serialx3, Ethernet

  • ARM9™ 32-bit RISC processor with 64 MB SDRAM working memory
  • Supports over 500+ PLC industrial communication protocols
  • Backup memory 128KB for retaining critical data or parameter
  • Supports the HMINavi Designer development tool free on Windows 10
  • Supports HMINavi Runtime data downloads through Serial, Ethernet, USB port
  • No limitation on the internal I/Os points used for variety application
  • Easy to switch one application to different LCD sizes in seconds
  • Supports operation in both landscape and portrait mode
  • Panel mount design ensures easy installation and IP66-rated front panel
Add to quote
To fulfill the stringent standards of the automation market, especially for packaging, label slitting, and F&B applications, Advantech developed the WOP-200K series for diverse operations that involve PLCs, thermal controllers, inverters, and sensors. Powered by an ARM9™ 32-bit RISC processor with 64 MB working memory, the WOP-200K series systems are available with LCDs of varying size (from 4.3″ to 15″). Additionally, WOP-200K systems are bundled with Advantech’s HMINavi software – a human-machine interface designed for HMI applications to reduce labor and improve manufacturing efficiency through visualization. Powerful connectivity drivers support 500+ variety market brands of PLC.
General Specification
Certification CE, FCC, UL61010
Dimensions (W x H x D) 271.1 x 212.1 x 63.8mm (10.68″ x 8.35″ x 2.51″)
Panel Dimensions 258.5 x 201.5mm (10.2″ x 7.9″)
Front Panel Thickness 6mm (0.24″)
Operating System WinCE 6.0, HMInavi Designer
CPU ARM9 226 – 533k, Embedded
Power Consumption 24W
Enclosure Rating IP65
Mount Options Panel
Weight (Net) 1.7 kg (3.74 lbs)
System Hardware Specification
Processor ARM9™ 32-bit RISC processor
Battery Backup Memory 128kB
Working Memory 64 MB SDRAM
Storage 128 MB NAND Flash
Runtime Max Size: 64 MB
Application Logic File Size: 64 MB
Communication Interface Specification
COM1 RS-232 (DB9 Female)
COM2 RS-422/485 (COM2: P5: 1, 4, 5, 6, 9)
USB USB 1.1 (Mini: P4: 1, 3, 7, 8)
Ethernet (RJ45) 10/100 Base-T
I/Os 1 x USB (Host)
1 x USB (Host)
LCD and Touchscreen Specification
Display Type WSVGA TFT LCD
Display Size 10.1″
Max. Resolution 1024 x 600
Max. Colors 65,536 colors
Luminance (cd/m²) 350
Backlight Life LED: 50,000 hr
Touchscreen 4-wire analog resistive
Environment Specification
Operating Temperature -15 ~ 65°C (5 ~ 140°F)
Storage Temperature -30 ~ 70°C (-22 ~ 158°F)
Humidity 90% RH @ 40°C, non-condensing
Ingress Protection IP65
Vibration Protection 5 ~ 50Hz (X,Y,Z direction, 10min, 1hour per axis)
Ordering Information
WOP-210K-BAE 10.1″ WSVGA, 64MB, 128MB(NAND), Serial & Ethernet
WOP-210K-SAE 10.1″ WSVGA, 64MB, 128MB(NAND), Serial&3
WOP-210K - Data Sheet
