Inductive sensors play a crucial role in automation technology. They enable precise detection of metal objects without physical contact, at high switching frequencies and with high switching accuracy. Due to their insensitivity to vibrations, dust and moisture, inductive sensors from di-soric are maintenance-free, robust and have extremely long lifetimes.
Di-Soric’s inductive proximity sensors in several sizes help ensure the trouble-free execution of automation processes and maximize the efficiency and reliability of your automated systems. In addition to the sensors for standard industrial applications, all-metal versions are available, pressure-resistant sensors up to 500 bars, as well as up to 3x or 4x switching distances. The list also includes sensors with an analog output for precise production or testing processes, welding field immune sensors, and sensors with IO-Link
Types of Proximity Sensors:
INS Standard
This INS Standard series, which has an excellent price/performance ratio, is ideal for standard applications in automation technology. Available in conventional designs of Ø 6.5 mm up to M30 and with switching distances of 1 to 15 mm, these sensors offer maximum flexibility for different fields of application. The inductive proximity switches are available with both the PVC cable and plug connection and ensure easy integration into existing systems. |

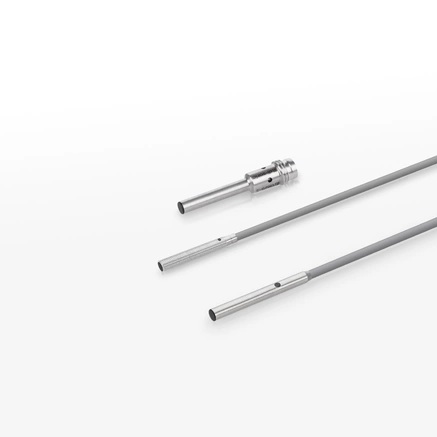

INM Miniature
The INM Miniature series offers a large selection of high-precision and efficient inductive proximity sensors. These compact sensors are specially designed for applications with limited space and enable reliable object detection in the smallest installation spaces. Available in a robust metal housing with diameters of Ø 3.0 mm to M5, proximity sensors are ideal for precise automation solutions. Thanks to their compact design, they offer maximum performance within a minimum amount of space. |
INE Industrial
The INE Industrial series includes high-quality, inductive proximity sensors that are available in all sizes up to M30 – in both normal and short designs. They offer maximum flexibility thanks to 3- and 4-pin M8 and M12 plug connectors and PVC and PUR cable variants. IO-Link sensors are also available for modern and efficient automation. Many of our inductive proximity switches have UL and UKCA certifications and are ideal for international use. |
INW Full metal
The INW full metal series includes highly-resilient, inductive proximity sensors, which are highly resilient to mechanical stresses thanks to their complete full-metal housing. In addition to the inductive proximity switches with IP67, this series also includes products with IP69k, which are completely impermeable to various corrosive chemicals used in cleaning processes. This series is perfect for harsh environments where maximum resistance is required. |
INQ Cubic Model
The INQ Cube design includes high-performance inductive proximity sensors in sizes 5 x 5 mm, 8 x 8 mm, 40 x 40 mm and the rectangular design in 8 x 16 mm, 28 x 10 mm and 40 x 12 mm and enables optimal adaptation to a wide variety of industrial applications. Thanks to the robust plastic or metal housing, these inductive proximity sensors with switching distances of 0.6 mm to 40 mm, they cover a wide range of applications. |
INA Analog
The INA analog series offers high-precision, inductive proximity sensors with analog current and voltage outputs. They are specially developed for applications in which even the smallest changes in the distance between metal parts can influence the process quality. Thanks to their precise measuring capability, these inductive proximity switches are ideal for demanding industrial applications in which continuous distance control is crucial. |
INP High-pressure resistant
Our high pressure-resistant, inductive proximity sensors with robust stainless steel housing in sizes M12 and M14 are specially developed for demanding applications under high pressure. They can withstand a process pressure of up to 500 bar and offer reliable performance in extreme environments. These inductive proximity switches are ideal for position monitoring in hydraulic systems and detection of valve positions under high pressure. |
INH High-temperature resistant
The INH high-temperature-resistant series was specially developed for demanding applications and includes inductive proximity sensors in the designs from M8 to M50 with a switching distance of 2 to 25 mm. They are ideal for use in extreme environments with temperatures of -25 °C to +230 °C thanks to an external evaluation unit. These inductive proximity switches are equipped with PTFE or silicone lines to guarantee maximum resistance to high temperatures and aggressive media. |
