SKU: HE-CV-070C-0x

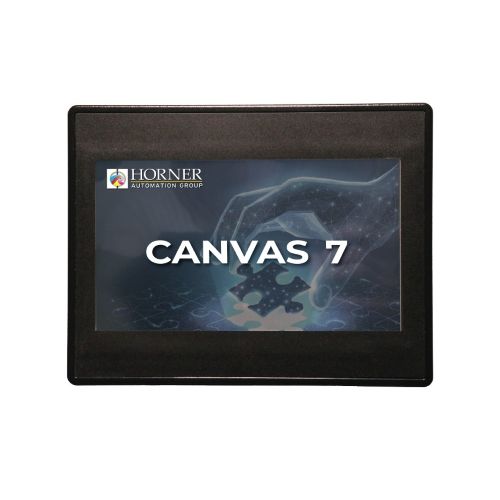

All Canvas 7 units feature a built-in logic engine, operator interface, networking and I/O.
| CONTROLLER | |
| Ladder Logic Memory | 2 MB |
| Logic Scan Rate | 0.02 mS/K |
| Removable Memory | microSD |
| Local Comment Storage | Yes |
| Floating Point Support | Yes |
| AutoTune PID Capable | Yes |
| OPERATOR INTERFACE | |
| Characters / Pixels | 800×480 |
| Display Technology | 7″ TFT Color |
| Character Height | selectable fonts |
| Number of Pages | 1023 |
| Fields or Objects per Page | 1023 |
| Total Keys | 6 |
| OEM Faceplate Available | Yes |
| I/O | |
| Built-in I/O Points | 22-44 |
| SmartStix, SmartRail, SmartBlock I/O Support | Yes, CsCAN and Ethernet |
| Digital Inputs / Outputs, max | 2048 / 2048 |
| Analog Inputs / Outputs, max | 512 / 512 |
| General Purpose Registers (words) | 50000 |
| General Purpose Internal Coils (bits) | 32768 (16384 retentive) |
| ETHERNET/INTERNET | |
| LAN Ports | 1 |
| Factory Protocols | Ethernet IP (Server & HMI), Modbus TCP (Client/Server), BACnet IP (Server), EGD |
| IIoT & Remote Access | MQTT Sparkplug, Horner OC360 Cloud Service*, WebMI via HTML5, EnvisionRV |
| Other Protocols | SMTP(Client), NTP (Client), FTP (Server) |
| *OCS360 is an annual subscription service. | |
| SERIAL COMMUNICATIONS | |
| Total Active Ports | 3 |
| RS-232 Ports / RS-485 Ports | 1 RS-232 & 1 RS-485 on first Modular Jack (MJ1/2); 1 RS-232 or RS-485 on second Modular Jack (MJ3) |
| PLC / Drive Protocols | Yes |
| RTU / Modbus Master / Slave | Yes |
| Serial ASCII In / Out | Yes |
| USB Ports (A and Mini-B) | USB 2.0 (480 MHz) for USB FLASH Drives (2TB); USB 2.0 (480 MHZ) Programming & Data Access |
| NETWORKING | |
| Integrated CAN Networks | 1 |
| Maximum CAN Distance | 500m per segment, 4 segments maximum |
| CAN Port (Independently Isolated) | Remote I/O, Peer-to-peer Comms, Cscape |
| Supported CAN Protocols | CsCAN, CANopen, DeviceNet, J1939 |
| Ethernet Productivity | One 10/100 Mbps (Auto-MDX) |
| Ethernet Protocols | TCP/IP, Modbus TCP, FTP, SMTP, EGD, ICMP, ASCII |
| Remote I/O | SmartRail, SmartStix, SmartBlock, SmartMod, OCS-I/O |
| PHYSICAL SPECIFICATIONS | |
| Height | 5.66″ / 144 mm |
| Width | 7.34″ / 187 mm |
| Depth | 1.84″ / 47 mm |
| I/O Module Depth | COM option adds 0.98″ / 24.83 mm depth |
| OPERATING SPECS & STANDARDS | |
| Operating Temperature* | -0 to 60°C |
| Humidity (non-condensing) | 5 to 95% |
| Product Certifications/Approvals | UL Class 1 Div II, CE |
| Environmental Rating | UL Type 1, 3R, 4, 4x, 12, 12k, 13 |
