SKU: HE959CPU2xx
The CPU250 modular controller brings powerful control and flexible input and output options together in one easy-to-install device, perfect for a wide range of industrial applications. With built-in Ethernet and USB connectivity, you can easily connect and manage your equipment. It is engineered for dependable performance in tough environments, operating smoothly in extreme temperatures. Whether you’re building new machines or upgrading existing systems, the CPU250 delivers the reliability and flexibility you need to keep your operations running efficiently—all in a space-saving design.

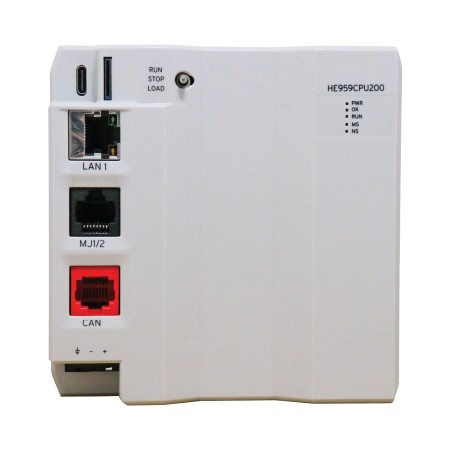

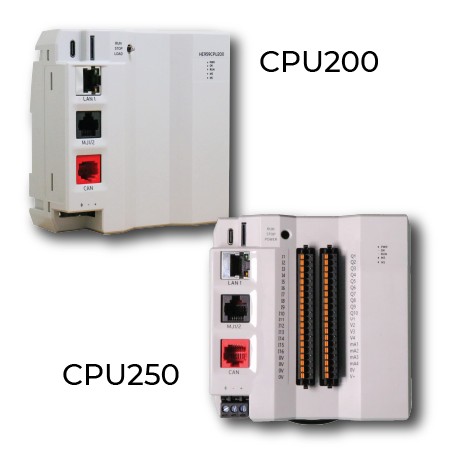

The CPU200 bundles the same features and specifications as the CPU250, but without the built-in I/O points. Its robust design, intuitive programming environment, and scalable architecture make the Micro CPU200 the perfect choice for OEMs, system integrators, and industrial engineers looking to maximize productivity and minimize downtime. (The CPU200 is ‘built-to-order’ and may have longer lead times)

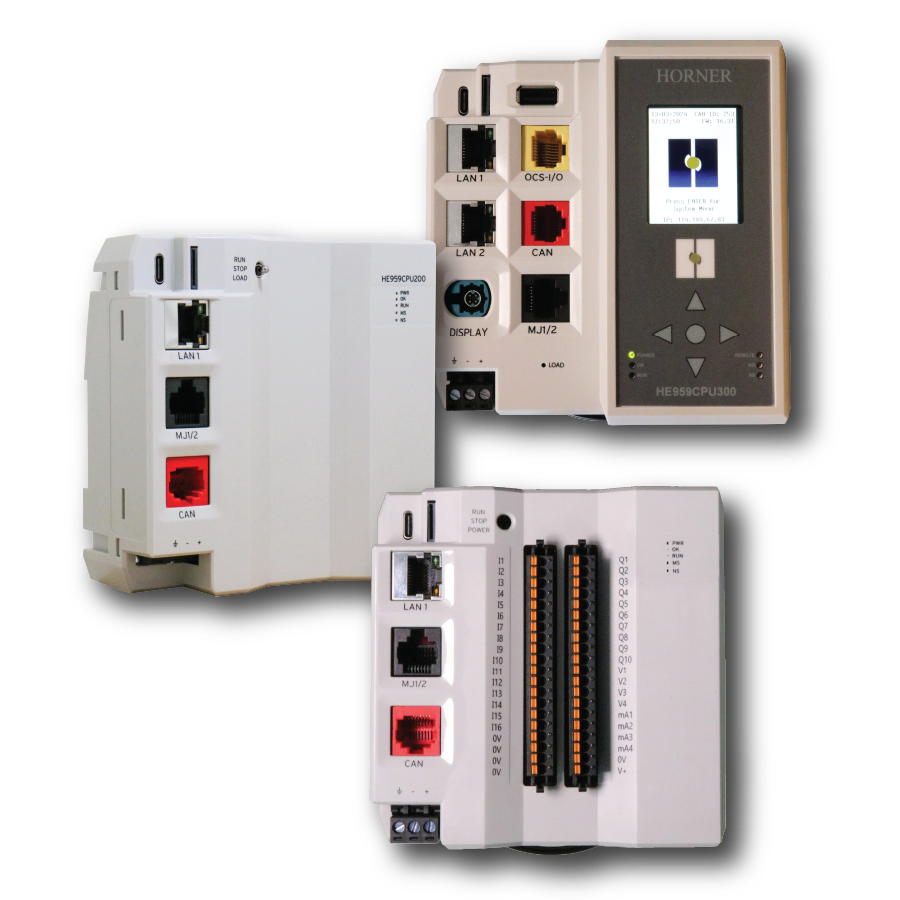

The CPU300 is a true all-in-one machine controller, with its single application program including functionality for Logic Control, I/O, HMI and Networking. The CPU300 is also truly modular, with the addition of snap-on OCS-I/O modules for sensor/actuator connection and HMI Connect touchscreen components for operator interface.
HE959CPU200 – No I/O. Expandable with up to 7 additional OCS-I/O modules. Includes (2) Din-Rail Stops.
HE959CPU250 – Includes 8 DC In, 10 DC Out, 8 Flexible (Digital or Analog mA/V) Inputs, and 8 Analog Out (4 x mA, 4 x V). Expandable with up to 7 additional OCS-I/O modules. Includes (2) Din-Rail Stops.
HE959CPU300 – CPU with Canvas capabilities, no built-in I/O. Local 2.2” display with support for remote HMI Connect and Advanced High-Bright IP67 displaysThe Modular Controllers are compatible with the Horner Micro Series
Watch our extensive video library on the CPU products, on our YouTube channel!
| General Specifications | CPU200 | CPU250 | CPU300 |
|---|---|---|---|
| Logic Capacity | 2MB, 50,000 word type Variables | 2MB, 50,000 word type Variables | 2MB @ 0.02 ms/K |
| DC Inputs & Outputs | n/a | 8 DC Inputs (4 High Speed), 10 DC Outputs (2 High Speed) | n/a |
| Flexible Inputs | n/a | 8 Flexible Inputs (Digital or Analog) configured as DC In or 0-10V/4-20mA inputs | n/a |
| Analog Outputs | n/a | 8 Analog Outputs (4 x 4-20mA, 4 x 0-10V) | n/a |
| Compatibility | Compatible with OCS-I/O modules for local and remote I/O expansion | ||
| Ports | Ethernet, RS232/485 and CAN ports, and WebMI-capable | 2 x 10/100 Mbps | |
| Plug-in Capabilities | USB-C for programming and power | USB-C for programming, Micro SD slot for datalogging | USB-C for programming, Micro SD slot for datalogging |
| Ethernet/Internet | |||
| LAN Ports | 1 | 1 | 2 |
| Factory Protocols | Ethernet IP (Server & HMI only), Modbus TCP (Client/Server), BACnet IP (Server), EGD | All protocols are standard with CPU300 | |
| IIoT & Remote Access | MQTT Sparkplug*, Horner OC360 Cloud Service*, WebMI via HTML5*, EnvisionRV | ||
| Other Protocols | SMTP(Client), FTP(Server) | ||
| *MQTT Sparkplug is not available for the CPU200 & CPU250, and will require a one-time upgrade for CPU260 (coming soon). WebMI is available as a separate license for the CPU200, CPU250 & CPU260. OCS360 is an annual subscription service. | |||
| Physical Dimensions | |||
| Height x Width x Depth | 4.5″ H x 4.91″ W x 1.97″ D | 4.5” H x 4.92” W x 1.97” D | |
| Operating Specs | |||
| Operating Temperature | -40ºC to 60ºC | -10ºC to 60ºC | |
| Humidity (non-condensing) | 5 to 95% | 5 to 95% | |
| Environmental Rating | IP20 | IP20 | |
