X5 Prime Controller 4.3″, 4 DC In, 4 DC Out, 4 Analog In (mA/V)

All units feature a built-in logic engine, operator interface, networking and I/O.

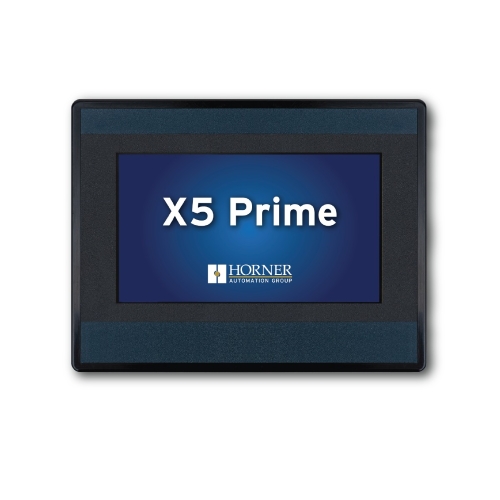

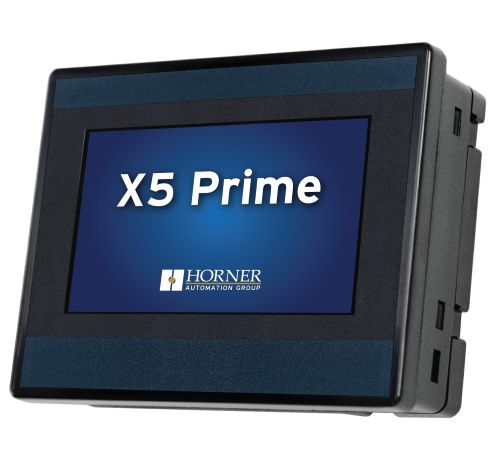

WIDE ASPECT COLOR TOUCHSCREEN The X5 Prime really packs a big picture into an overall small package. With just a 4.6” x 3.5” cutout, this 4.3” wide aspect screen is very friendly, intuitive, and clear. By incorporating our hidden soft key technology, you can use the entire screen to illustrate your specific applications.
STREAMLINED I/O In an effort to make implementing Horner OCS controllers as seamless and user-friendly as possible, we have selected a streamlined set of on-board I/O. 4 digital inputs, 4 digital outputs, and 4 analog inputs make automating your applications, and your organization, as simple as the push of a (virtual) button.
PERFORMANCE When it comes to speed, resolution, and technical capabilities, the X5 is leading the way. We have developed some entirely new design techniques, a suite of capabilities similar to our more established XL line of products, and unprecedented acceptance across an array of commercial and industrial applications. In the market of fixed I/O, web-compatible controllers, the X5 Prime is unmatched.

CONTROLLER
Ladder Logic Memory	2 MB
Logic Scan Rate	0.02 mS/K

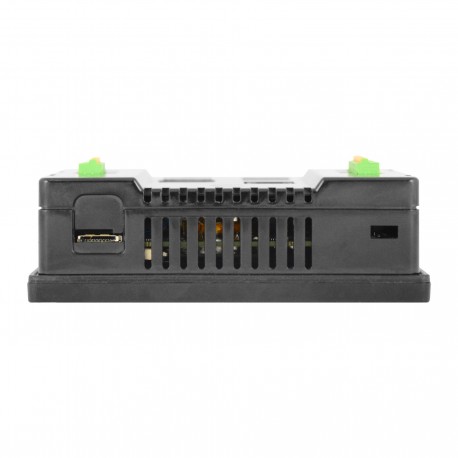

Removable Memory	microSD
Local Comment Storage	Yes
Floating Point Support	Yes
AutoTune PID Capable	Yes
OPERATOR INTERFACE INTERFACE
Characters / Pixels	480 x 272
Display Technology	4.3″ TFT Color, 450 nits
Character Height	Selectable Fonts
Number of Pages	1023
Fields or Objects per Page	1023
Total Keys	5 (on screen)
Function Keys	4 (on screen)
OEM Faceplate Available	Yes

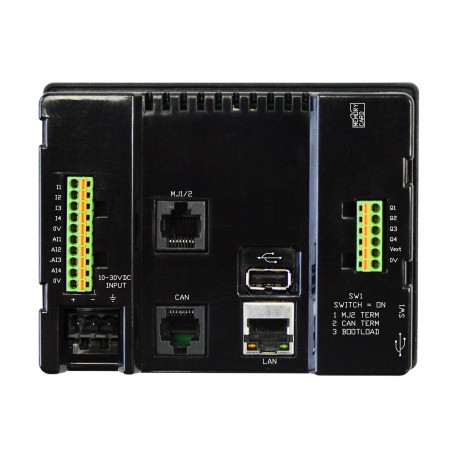

I/O
Built-in I/O Points	12
SmartStix, SmartRail, SmartBlock I/O Support	yes, CsCAN and Ethernet
Digital Inputs / Outputs, max	2048 / 2048
Analog Inputs / Outputs, max	512 / 512
General Purpose Registers (words)	50,000 (50,000 retentive)
General Purpose Internal Coils (bits)	32768 (16384 retentive)
ETHERNET/INTERNET
LAN Ports	1
Factory Protocols	Ethernet IP (Server & HMI), Modbus TCP (Client/Server), BACnet IP (Server), EGD
IIoT & Remote Access	MQTT Sparkplug, Horner OC360 Cloud Service, WebMI via HTML5, EnvisionRV
Other Protocols	SMTP(Client), NTP (Client), FTP (Server)
*MQTT Sparkplug & WebMI require a one-time upgrade. OCS360 is an annual subscription service.

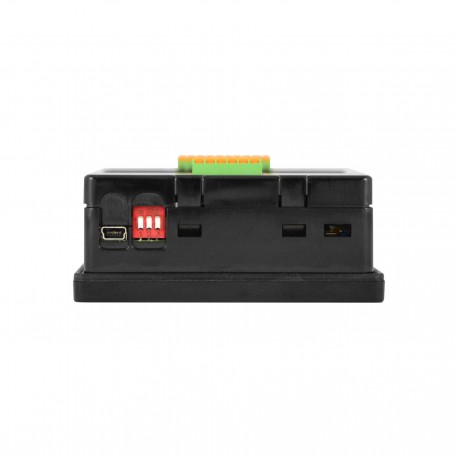

SERIAL COMMUNICATIONS
Total Active Ports	2
RS-232 Ports / RS-485 Ports	RS-232 / RS-485 (1 of each)
PLC / Drive Protocols	Yes
RTU / Modbus Master / Slave	Yes
Serial ASCII In / Out	Yes
USB Ports (A and Mini-B)	Yes
NETWORKING
Integrated CAN Networks	Standard
Supported CAN Networks	CsCAN, CANopen (firmware change), DeviceNet Master (contact factory), SAE J1939 (contact factory)
Maximum CAN Distance	1,640 ft.
Programming over CAN	Yes
PHYSICAL SPECIFICATIONS
Height	3.79″ / 96.27 mm
Width	4.92″ / 124.97 mm
Total Depth	1.4″ / 35.8 mm
OPERATING SPECIFICATIONS & STANDARDS
Operating Temperature	-10 to 60°C
Humidity (non-condensing)	5 to 95%
Product Certifications	CE, C’, UL Class 1 Div II
Environmental Rating	IP66, UL Type 3R, 4, 4x, 12, 12k, 13
