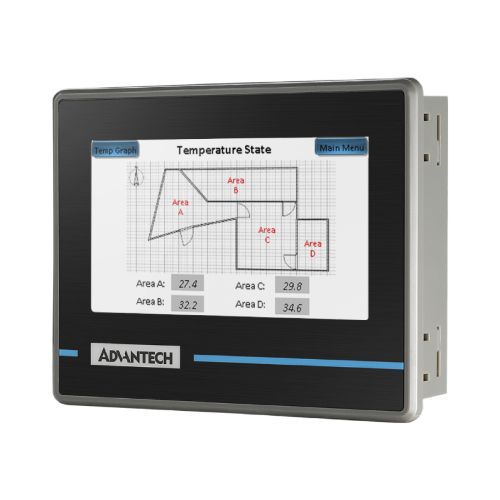

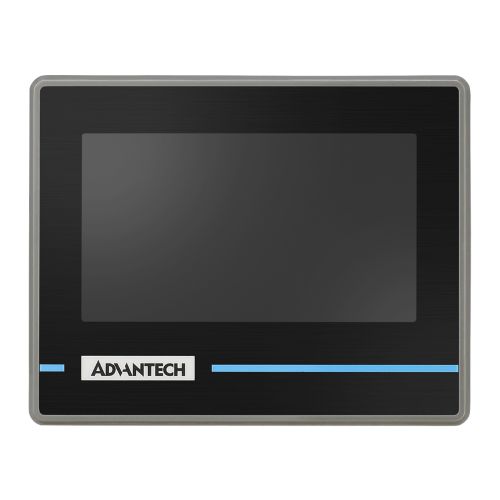

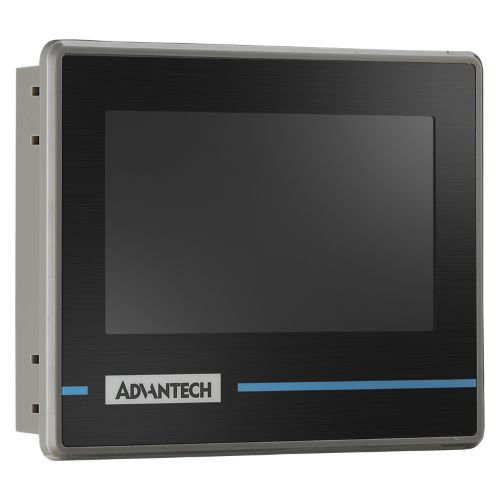

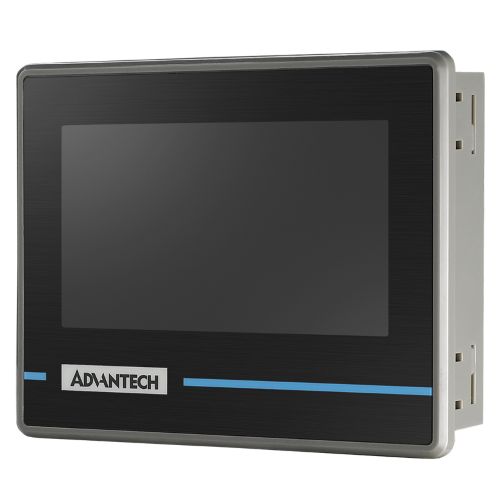

Advantech – WOP-204K HMI

SKU: WOP-204K-xxx

4.3″ WQVGA, 64MB, 128MB(NAND), Serialx3, Ethernet

  • ARM9™ 32-bit RISC processor with 64 MB SDRAM working memory
  • Supports over 500+ PLC industrial communication protocols
  • Backup memory 128KB for retaining critical data or parameter
  • Supports the HMINavi Designer development tool free on Windows 10
  • Supports HMINavi Runtime data downloads through Serial, Ethernet, USB port
  • No limitation on the internal I/Os points used for variety application
  • Easy to switch one application to different LCD sizes in seconds
  • Supports operation in both landscape and portrait mode
  • Panel mount design ensures easy installation and IP66-rated front panel
Add to quote
To fulfill the stringent standards of the automation market, especially for packaging, label slitting, and F&B applications, Advantech developed the WOP-200K series for diverse operations that involve PLCs, thermal controllers, inverters, and sensors. Powered by an ARM9™ 32-bit RISC processor with 64 MB working memory, the WOP-200K series systems are available with LCDs of varying size (from 4.3″ to 15″). Additionally, WOP-200K systems are bundled with Advantech’s HMINavi software – a human-machine interface designed for HMI applications to reduce labor and improve manufacturing efficiency through visualization. Powerful connectivity drivers support 500+ variety market brands of PLC.



General Specification
Certification CE, FCC, UL61010
Dimensions (W x H x D) 129.1 x 103 x 31.3mm (5.08″ x 4.06″ x 1.23″)
Cutout Dimensions 115.5 x 92.5mm (4.55″ x 3.64″)
Front Panel Thickness 5 mm (0.19 in)
Operating System HMI RTOS, HMINavi Designer
Power Supply Voltage 24Vdc ± 10%, Isolation
Power Consumption 10W
Enclosure Housing Plastic
Mount Options Panel
Weight (Net) 0.25 kg (0.51 lbs)
LCD and Touchscreen
Display Type WQVGA TFT LCD
Display Size 4.3″
Max. Resolution 480 x 272
Max. Colors 65,536 colors
Luminance (cd/m²) 400
Backlight Life LED, 20,000 hr
Touchscreen 4-wire analog resistive
System Hardware
CPU ARM® 32-bit RISC processor
Battery Backup Memory 128KB
Working Memory 64 MB SDRAM
Storage 128 MB NAND Flash
Runtime Area: Slot for MB
User Area: Max. Size: 64 MB

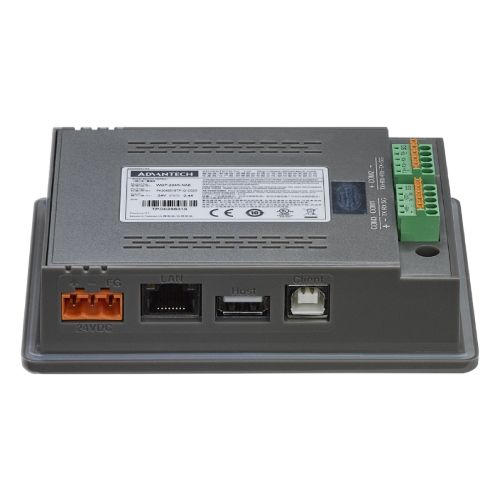

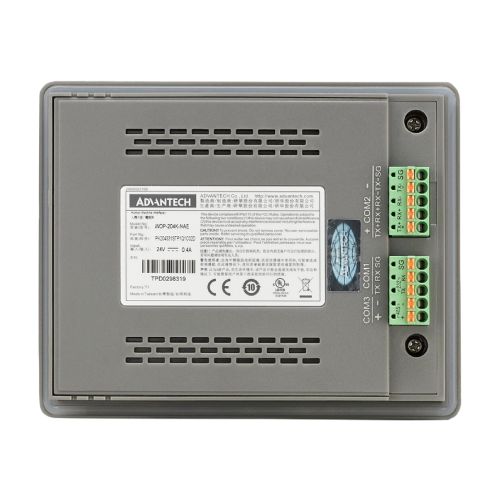

Communication Interface
COM1 RS-232 (5-Pin Terminal)
COM2 RS-422/485 (5-Pin Terminal)
COM3 RS-485 (5-Pin Terminal)
Ethernet (RJ45) 10/100 Base-T
I/Os 1 x USB (Client)
1 x USB (Host)
Environment
Operating Temperature -15 ~ 65°C (5 ~ 149°F)
Storage Temperature -25 ~ 70°C (-4 ~ 158°F)
Humidity 95% RH @ 40°C, non-condensing
Front panel IP65
Vibration Protection 5 ~ 500Hz (X, Y, Z direction, 1Grms, 1hour per axis)
Ordering Information
WOP-204K-NAE 4.3″ WQVGA, 64MB, 128MB(NAND), Serial x3, Ethernet
WOP-204K-SAE 4.3″ WQVGA, 64MB, 128MB(NAND), Serial x3



WOP-204K - Data Sheet
