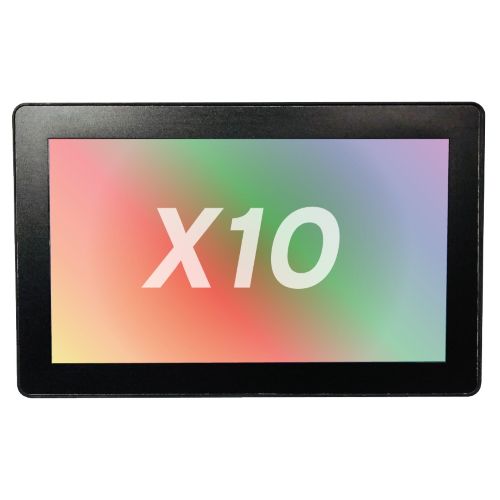

SKU: HE-X10x
Use the dropdown below to select from our two distinct models: X10R (relay outputs) and X10A (digital outputs)
All OCS PLCs feature a built-in logic engine, operator interface, networking, and I/O.
Device features include:
Networking features include:
| CONTROLLER | |
| Ladder Logic Memory | 256 kB |
| Logic Scan Rate | 0.4 mS/K |
| Removable Memory | microSD |
| Local Comment Storage | Yes |
| Floating Point Support | Yes |
| AutoTune PID Capable | Yes |
| OPERATOR INTERFACE INTERFACE | |
| Characters / Pixels | 1024 x 600 |
| Display Technology | LCD with LED 300 nits |
| Character Height | Selectable Fonts |
| Number of Pages | 250 |
| Fields or Objects per Page | 100 |
| Total Keys | 5 (on screen) |
| Function Keys | 4 (on screen) |
| OEM Faceplate Available | No |
| I/O | |
| Built-in I/O Points | 26 (model R); 30 (model A) |
| SmartStix, SmartRail, SmartBlock I/O Support | yes, CsCAN |
| Digital Inputs / Outputs, max | 1024 / 1024 |
| Analog Inputs / Outputs, max | 256 / 256 |
| General Purpose Registers (words) | 5000 retentive |
| General Purpose Internal Coils (bits) | 2,048 (1,024 retentive) |
| SERIAL COMMUNICATIONS | |
| Total Active Ports | 2 |
| RS-232 Ports / RS-485 Ports | RS-232 / RS-485 (1 of each) |
| PLC / Drive Protocols | Limited |
| RTU / Modbus Master / Slave | Yes |
| Serial ASCII In / Out | Yes |
| USB Ports (A and Mini-B) | Mini-B only |
| NETWORKING | |
| Integrated CAN Networks | Standard |
| Supported CAN Networks | CsCAN |
| Maximum CAN Distance | 1,640 ft. |
| Programming over CAN | Yes |
| PHYSICAL SPECIFICATIONS | |
| Height | 6.5″ / 166.20 mm |
| Width | 10.4″ / 263.9 mm |
| Depth | 2.2″ / 55.8 mm |
| OPERATING SPECIFICATIONS & STANDARDS | |
| Operating Temperature | -10 to 60°C |
| Humidity (non-condensing) | 5 to 95% |
| Voltage | 10-30 VDC |
| Product Certifications | CE, C’ |
| Environmental Rating | UL 50E Type 1, 4x, 12, 12k, 13 (indoor use) |
