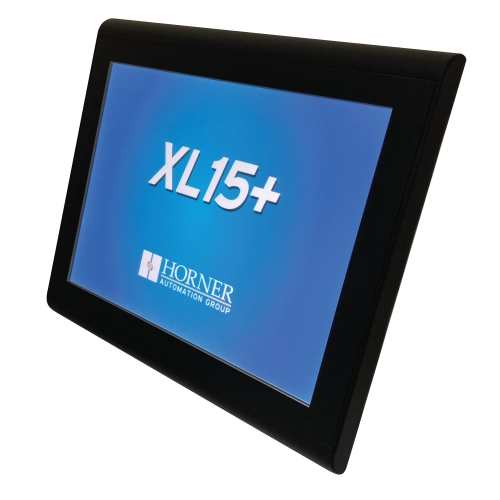

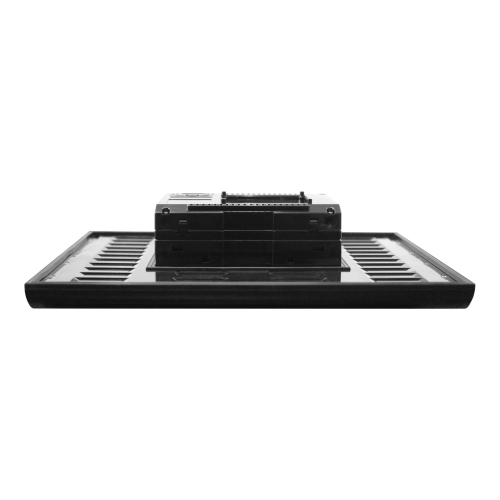

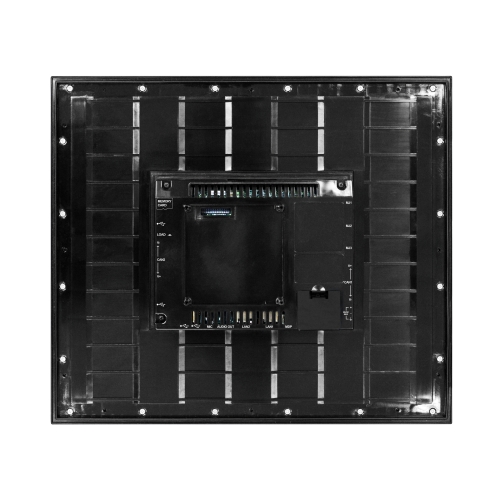

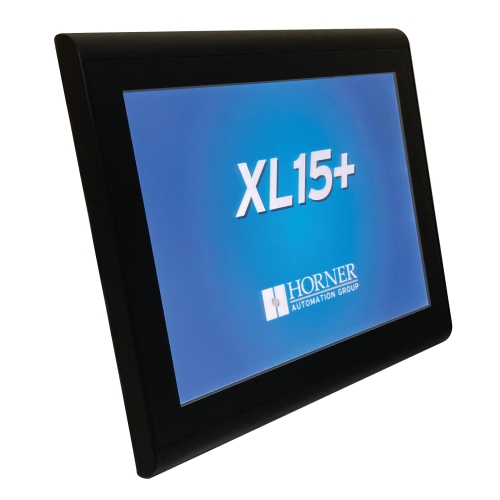

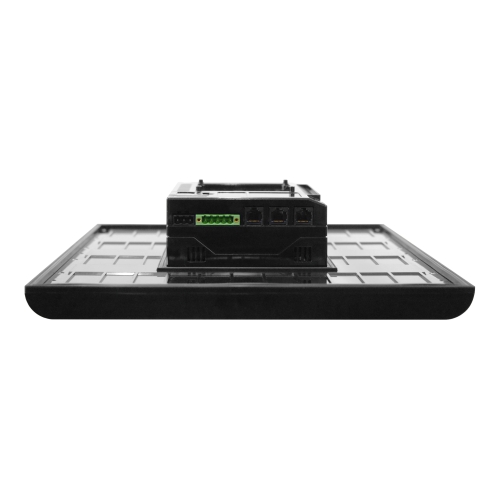

Horner Automation – XL15Plus OCS

SKU: HE-XP7Ex

The 15″ XL+ OCS is a high-performance all-in-one controller. This unit features an advanced integrated operator interface with a powerful control engine, featuring multiple USB & serial ports, 2 Ethernet ports and 2 CAN ports. All units feature a Video Output port, allowing a slave monitor to mirror the content of the main screen. Supports all available Horner Remote I/O systems. NEMA 4X rated.

Models

Clear

Add to quote

COMPREHENSIVE CONNECTIVITY In the realm of connectivity, no other controller can match the offerings of the XL15Plus. With three serial ports, dual Ethernet, dual CAN, four USB, mini–Display Port (HDMI), mic and audio connectors, the possibilities are limitless. The functionality of the dual Ethernet allows for local and internet connectivity for ultimate security. Protocols include email, FTP, Modbus, WebMI, and dozens of others.
INDUSTRY-LEADING CONTROL The high-speed dual core CPU of the XL15Plus delivers the ultimate control performance. The controller can be programmed with advanced ladder or IEC (ST, LD, FBD, IL, SFC). The integrated screen development of the XL15Plus allows creation of quick, attractive graphics.
EXTENSIVE I/O AND COMMUNICATIONS In addition to exceptional display performance, the XL15Plus contains a powerful logic engine with built-in digital and analog I/O and online programming capability. The flexibility of the high-speed counter and almost limitless remote I/O options ensure the integrated setup of the XL15Plus is compatible with your requirements.
ENHANCED MULTIMEDIA The display benefits end-users by providing high visibility and allowing the XL15Plus to be used in a variety of ambient lighting conditions. The XL15Plus leads the industry through its high-resolution screen with enhanced optics; video playback (great for instructions); video through USB (ideal for monitoring); audio recording and playback (used for notes, instructions, or alerts); external display; dynamic objects (trends, gauges, note pads); and years of planned enhancements.

CONTROLLER
CPU	Dual Core ARM with Video Accelerators
Logic Scan Rate	0.006 mS/K
Built-In Storage	4 GB
Removable Memory	128GB microSD / 2TB USB
Retentive Storage	512K Battery-Backed Ram
Programming Languages	Advanced Ladder or IEC: ST, LD, FBD, IL, SFC
USER INTERFACE
Display Technology	15” TFT Color 500 cd/m2
Resolution / Color	1024 x 767 (XGA) / 16 Million Colors
Touch Screen	Resistive with Laminated Cover
Character Height	Selectable Fonts
Number of Pages	1023
Field or Objects per Pages	1023
Total Keys	8 (on screen)
Function Keys	7 (on screen)
I/O
Built-in I/O Points	22-44
SmartStix, SmartRail, SmartBlock I/O Support	CsCAN & Ethernet
Digital Inputs / Outputs, Max	2048 / 2048
Analog Inputs / Outputs, Max	512 / 512
General Purpose Registers (words)	50000
General Purpose Internal Coils (bits)	32768 (16384 retentive)
ETHERNET / INTERNET
Ethernet Support	Standard, 2 Ports
Remote Access	WebMI, HTTP or EnvisionRV
Remote File Access	FTP or EnvisionFX
IIoT Support	MQTT (Sparkplug)
CONNECTIVITY
Serial Ports	3 Ports with RS-232 and RS-485
USB Ports (A and Mini-B)	3 Host, 1 Programming
Ethernet	Dual 10/100/1000 Support with Auto MDIX Support
CAN	Dual Isolated 125K – 1 MB
NETWORKING
Integrated CsCAN Network	Standard
Maximum CsCAN Distance	1640 ft.
Programming over Network	Yes
Peer-to-Peer Messaging	Yes
PHYSICAL SPECIFICATIONS
Height (inches/mm)	12.60″ / 320 mm
Width (inches/mm)	14.57″ / 371 mm
Depth (inches/mm)	4.08″ / 104 mm
I/O Module Depth	COM option adds 0.5″ / 13mm depth
Weight	3.46kg / 7.63lb
OPERATING SPECS & STANDARDS
Primary Power range	10-30 VDC
Operating Temperature	-10˚ to 60˚ C
Humidity (non-condensing)	5 to 95%
Product Certifications / Approvals	UL Class 1 Div II, CE
Environmental Ratings	IP65, UL Type 1, 3R, 4, 4x, 12, 12k, 13, ABS
