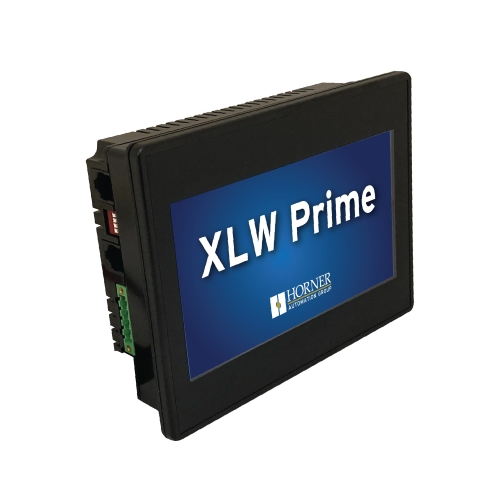

Horner Automation – XLW Prime

SKU: HE-XPLWEx

All units feature a built-in logic engine, operator interface, networking and I/O.

Models

Clear

Add to quote

XLW Prime – Logic engine features 1MB of application memory with a 0.02mS/K logic scan. Online Programming Mode (making logic changes on the fly without going thru stop mode) is supported.

Operator Interface features include:

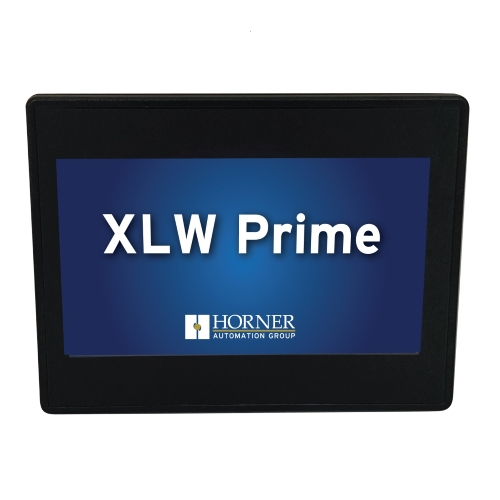

800×480 LCD TFT color graphics display with a high-resolution resistive touchscreen
USB 2.0 On-the-Go port (mini-B 5pin) is available for programming

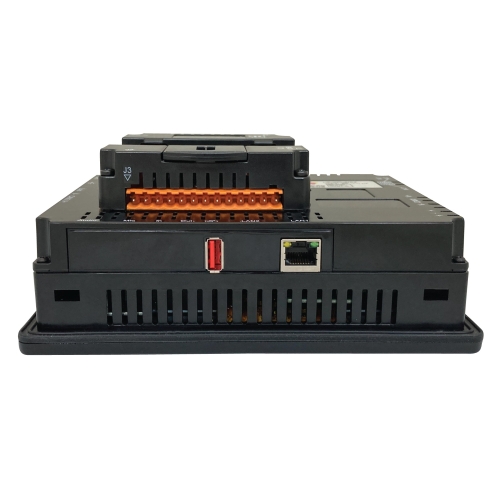

USB 2.0 Host port (A) is available for exchanging files with USB FLASH drives

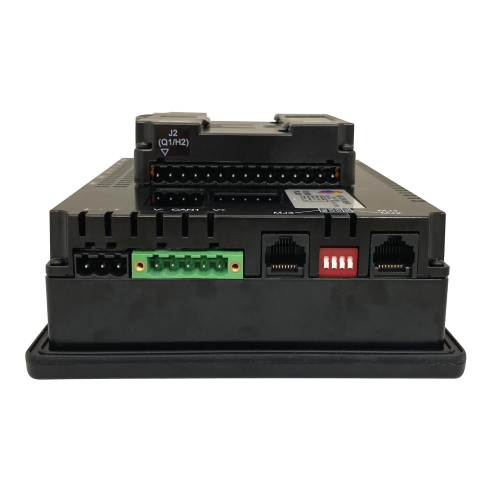

Two (2) RS-232 and one (1) RS-485 port support RTU/Modbus Master/Slave, ASCII In/Out, and PLC/Drive downloadable protocols

XLW Prime Networking features include:

Built-in 10/100 Ethernet port
Integrated CsCAN port

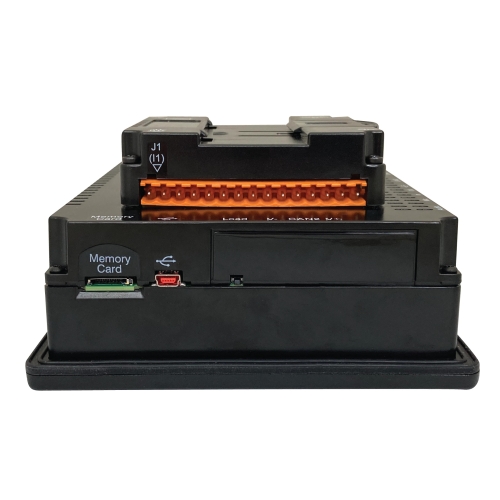

All units feature a microSD slot, supporting at least 32GB.

CONTROLLER
Ladder Logic Memory	2 MB
Logic Scan Rate	0.02 mS/K
Removable Memory	microSD
Local Comment Storage	Yes
Floating Point Support	Yes
AutoTune PID Capable	Yes
OPERATOR INTERFACE
Characters / Pixels	800×480
Display Technology	7″ TFT Color, 420 nits
Character Height	selectable fonts
Number of Pages	1023
Fields or Objects per Page	1023
Total Keys	6
OEM Faceplate Available	Yes
I/O
Built-in I/O Points	22-44
SmartStix, SmartRail, SmartBlock I/O Support	yes, CsCAN and Ethernet
Digital Inputs / Outputs, max	2048 / 2048
Analog Inputs / Outputs, max	512 / 512
General Purpose Registers (words)	50000
General Purpose Internal Coils (bits)	32768 (16384 retentive)
ETHERNET/INTERNET
LAN Ports	1
Factory Protocols	Ethernet IP (Server & HMI), Modbus TCP (Client/Server), BACnet IP (Server), EGD
IIoT & Remote Access	MQTT Sparkplug, Horner OC360 Cloud Service, WebMI via HTML5, EnvisionRV
Other Protocols	SMTP(Client), NTP (Client), FTP (Server)
*MQTT Sparkplug & WebMI require a one-time upgrade. OCS360 is an annual subscription service.
SERIAL COMMUNICATIONS
Total Active Ports	3
RS-232 Ports / RS-485 Ports	1 RS-232 & 1 RS-485 on first Modular Jack (MJ1/2); 1 RS-232 or RS-485 on second Modular Jack (MJ3)
PLC / Drive Protocols	Yes
RTU / Modbus Master / Slave	Yes
Serial ASCII In / Out	Yes
USB Ports (A and Mini-B)	USB 2.0 (480 MHz) for USB FLASH Drives (2TB); USB 2.0 (480 MHZ) Programming & Data Access
NETWORKING
Integrated CAN Networks	1
Supported CAN Networks	CsCAN, CANopen, J1939 and DeviceNet Master (layer 3 as a selectable option)
Maximum CAN Distance	500m per segment, 4 segments maximum
Programming over CAN	CsCAN only

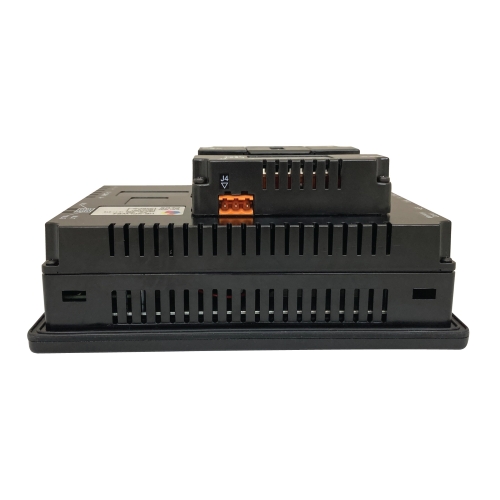

PHYSICAL SPECIFICATIONS
Height	5.66″ / 144 mm
Width	7.34″ / 187 mm
Depth	1.84″ / 47 mm
I/O Module Depth	COM option adds 0.98″ / 24.83 mm depth
OPERATING SPECS & STANDARDS
Operating Temperature*	-10 to 60°C
Humidity (non-condensing)	5 to 95%
Product Certifications/Approvals	UL Class 1 Div II, CE
Environmental Rating	UL Type 1, 3R, 4, 4x, 12, 12k, 13
