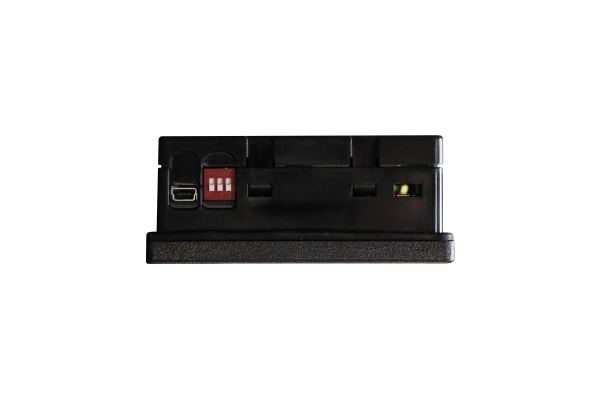

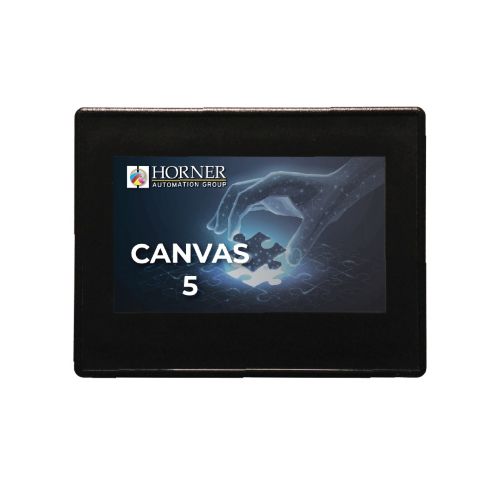

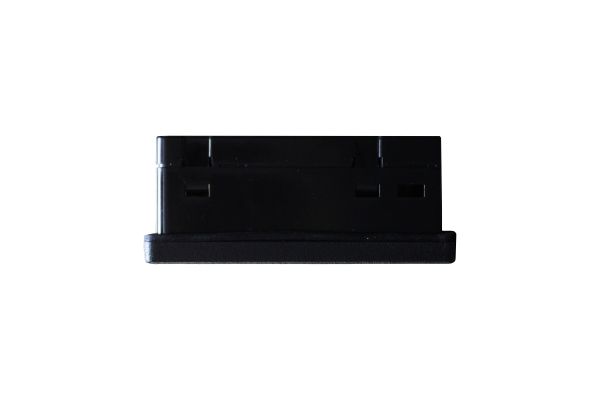

Horner Automation - Canvas 5
Horner Automation - Canvas 5 - Image 2
Horner Automation - Canvas 5 - Image 3
Horner Automation - Canvas 5 - Image 4
Horner Automation - Canvas 5 - Image 5
Horner Automation - Canvas 5 - Image 6
Horner Automation - Canvas 5 - Image 7
Horner Automation - Canvas 5 - Image 8

Horner Automation – Canvas 5

SKU: HE-CV-043C-01

Canvas 5 PLC 4.3″ touchscreen, 4 DC In, 4 DC Out, 4 Analog In (mA/V)

Add to quote
All Canvas 5 PLC feature a built-in logic engine, operator interface, networking and I/O. Device features include:
  • All new graphics engine built with Cscape 10 enhanced graphics
  • Multi-core SOM with dedicated logic and graphics cores
  • 4.3″ (480×272) display with virtual function keys
  • 12 I/O points onboard including 4 DC In, 4 DC Out and 4 Analog In
  • Ethernet, RS232/485 serial ports, 1 CAN port, 2MB logic memory
  • USB-A or Micro SD for data storage, same cutout as X5 Prime
  • Online Programming and MQTT support, as well as improved WebMI features
  • All Canvas models include WebMI+, MQTT, Enhanced IEC and J1939 features included as standard.
Networking features include:
  • (1) Built-in 10/100 Ethernet port
  • (1) Integrated CAN port that supports either CsCAN, CANopen, J1939 or DeviceNet Scanner
CONTROLLER
Ladder Logic Memory 2 MB
Logic Scan Rate 0.02 mS/K
Removable Memory microSD
Local Comment Storage Yes
Floating Point Support Yes
AutoTune PID Capable Yes
OPERATOR INTERFACE INTERFACE
Characters / Pixels 480 x 272
Display Technology 4.3″ TFT Color
Character Height Selectable Fonts
Number of Pages 1023
Fields or Objects per Page 1023
Total Keys 5 (on screen)
Function Keys 4 (on screen)
OEM Faceplate Available Yes
I/O
Built-in I/O Points 12
SmartStix, SmartRail, SmartBlock I/O Support Yes, CsCAN and Ethernet
Digital Inputs / Outputs, max 2048 / 2048
Analog Inputs / Outputs, max 512 / 512
General Purpose Registers (words) 50,000 (50,000 retentive)
General Purpose Internal Coils (bits) 32768 (16384 retentive)
ETHERNET/INTERNET
Ethernet Support Standard
Remote Access WebMI, HTTP or EnvisionRV
Remote File Access FTP or EnvisionFX
IIoT Support MQTT (Sparkplug)
SERIAL COMMUNICATIONS
Total Active Ports 2
RS-232 Ports / RS-485 Ports RS-232 / RS-485 (1 of each)
PLC / Drive Protocols Yes
RTU / Modbus Master / Slave Yes
Serial ASCII In / Out Yes
USB Ports (A and Mini-B) Yes
NETWORKING
Integrated CAN Networks 1
Maximum CAN Distance 500m per segment, 4 segments maximum
CAN Port (Independently Isolated) Remote I/O, Peer-to-peer Comms, Cscape
Supported CAN Protocols CsCAN, CANopen, DeviceNet, J1939
Ethernet Productivity One 10/100 Mbps (Auto-MDX)
Ethernet Protocols TCP/IP, Modbus TCP, FTP, SMTP, EGD, ICMP, ASCII
Remote I/O SmartRail, SmartStix, SmartBlock, SmartMod, OCS-I/O
PHYSICAL SPECIFICATIONS
Height 3.79″ / 96.27 mm
Width 4.92″ / 124.97 mm
Total Depth 1.4″ / 35.8 mm
OPERATING SPECIFICATIONS & STANDARDS
Operating Temperature -10 to 60°C
Humidity (non-condensing) 5 to 95%
Product Certifications CE, UL Class 1 Div II
Environmental Rating IP66, UL Type 3R, 4, 4x, 12, 12k, 13
User Manual
Quick Reference Guide
OCS Datasheet
