Horner Automation – XLEe OCS

SKU: HE-XE1Ex

All XLEe units feature a built-in logic engine, operator interface, networking and I/O, and Ethernet standard.

Models

Clear

Add to quote

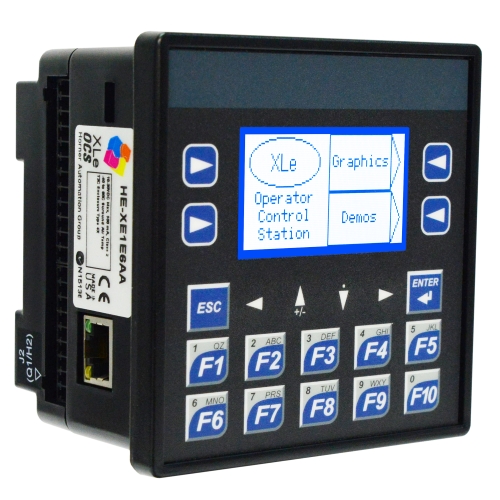

Features of the XLEe Operator Interface include:

Standard Ethernet
128×64 graphical display
20-key keypad with function key and numeric entry capability
Logic engine features 256KB of application memory with a 0.7mS/K logic scan.
(2) RS-232/485 ports support RTU/Modbus Master/Slave, ASCII In/Out, and PLC/Drive downloadable protocols
integrated CsCAN port
Removable Mass Storage device
CANopen Master/Slave Support

CONTROLLER
Ladder Logic Memory	256 KB
Logic Scan Rate	0.7 mS/K

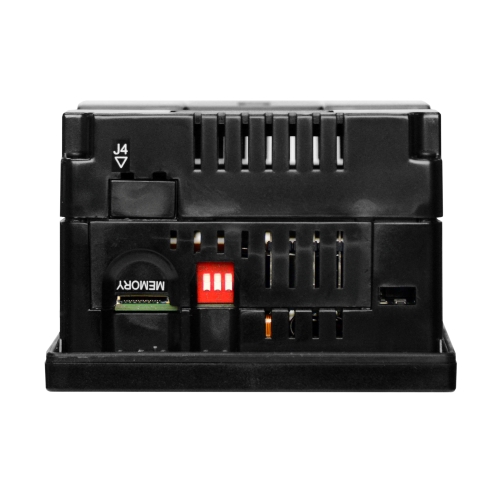

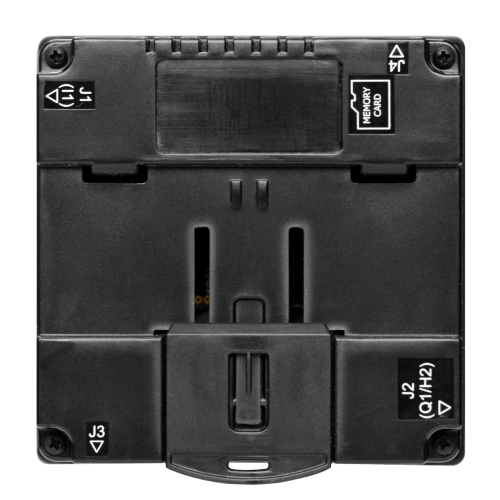

Removable Memory	microSD
Local Comment Storage	Yes
Floating Point Support	Yes
AutoTune PID Capable	Yes

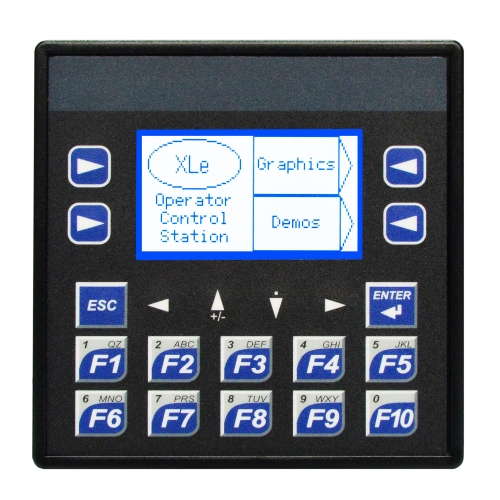

OPERATOR INTERFACE
Characters / Pixels	128×64
Display Technology	Transflective LCD
Character Height	selectable fonts
Number of Pages	1023
Fields or Objects per Page	50
Total Keys	20
Function Keys	10
OEM Faceplate Available	Yes
I/O
Built-in I/O Points	22-44
SmartStix, SmartRail, SmartBlock I/O Support	yes, CsCAN
Digital Inputs / Outputs, max	2048 / 2048
Analog Inputs / Outputs, max	512 / 512
General Purpose Registers (words)	9,999
General Purpose Internal Coils (bits)	4,096 (2,048 retentive)
ETHERNET/INTERNET

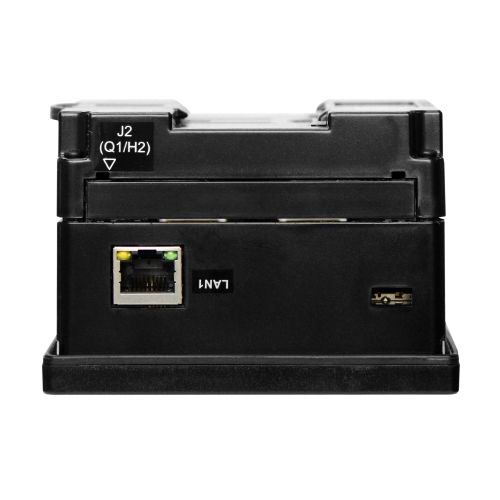

Ethernet Support	10/100 Support w/Auto MDIX Support
Remote Access	WebMI, EnvisionRV
Remote File Access	via EnvisionFX

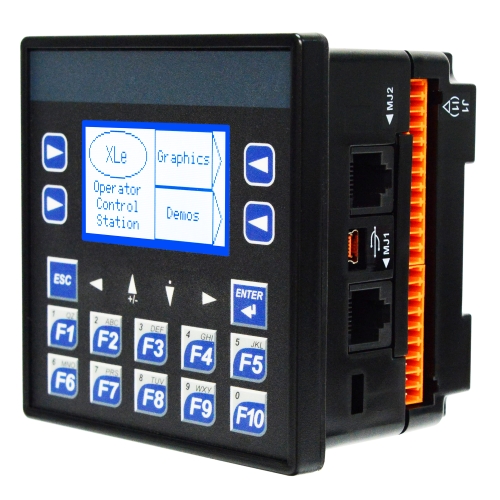

SERIAL COMMUNICATIONS
Total Active Ports	2

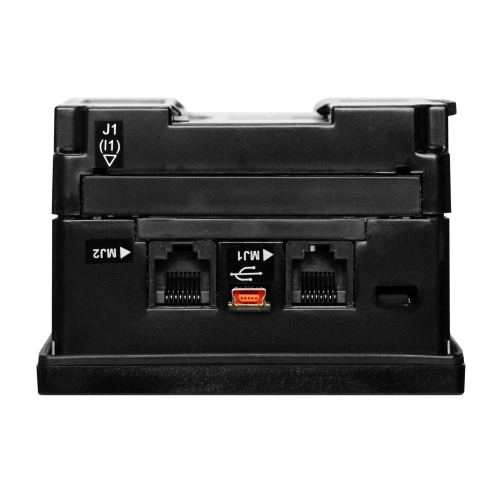

RS-232 Ports / RS-485 Ports	RS-232 / RS-485 (x2)
PLC / Drive Protocols	Yes
RTU / Modbus Master / Slave	Yes
Serial ASCII In / Out	Yes
USB Ports (A and Mini-B)	no
NETWORKING

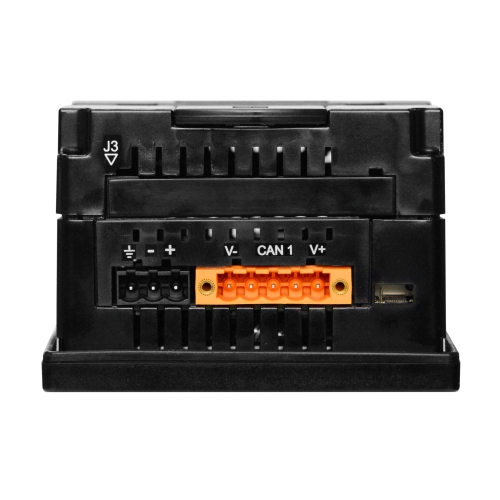

Integrated CAN Networks	1
Supported CAN Networks	CsCAN, CANopen (firmware change), DeviceNet Master (-33 option), SAE J1939 (-44 option)
Maximum CAN Distance	500m per segment, 4 segments maximum
Programming over CAN	CsCAN only
PHYSICAL SPECIFICATIONS
Height	3.780″ / 96.00 mm
Width	3.780″ / 96.00 mm
Depth	2.264″ / 57.5 mm
I/O Module Depth	COM option adds 0.5″ / 13 mm depth
OPERATING SPECS & STANDARDS
Operating Temperature*	-10 to 60°C, *Note: -40°C Low Temp Option, Contact Factory
Humidity (non-condensing)	5 to 95%
Product Certifications	CE, C’, UL Class 1 Div II,
Environmental Rating	NEMA & UL Type 1, 3R, 4, 4x, 12, 12k, 13, ABS
