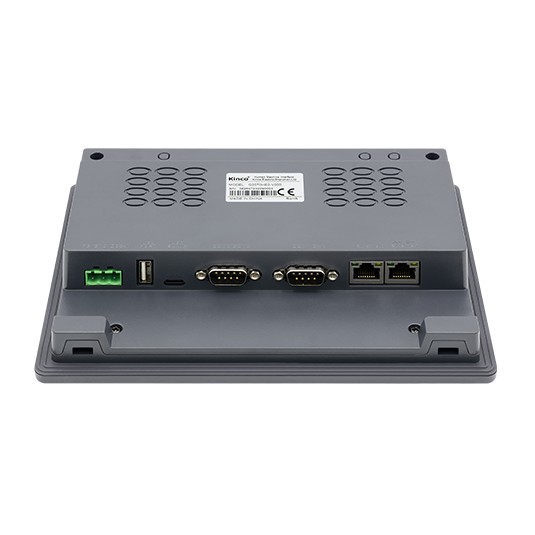

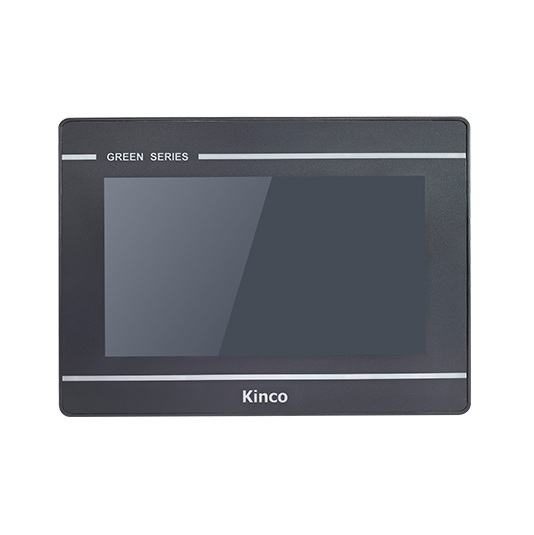

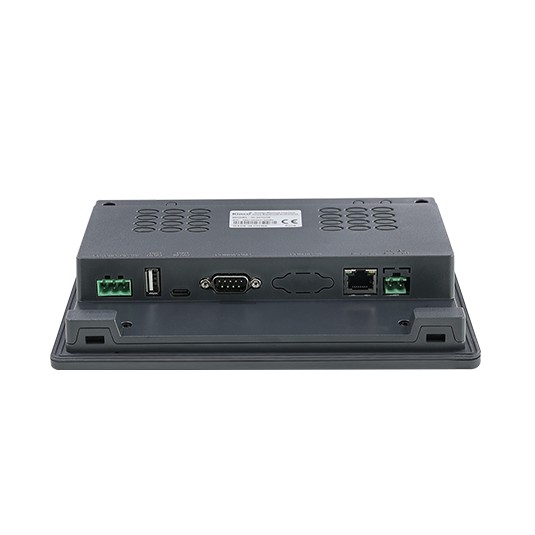

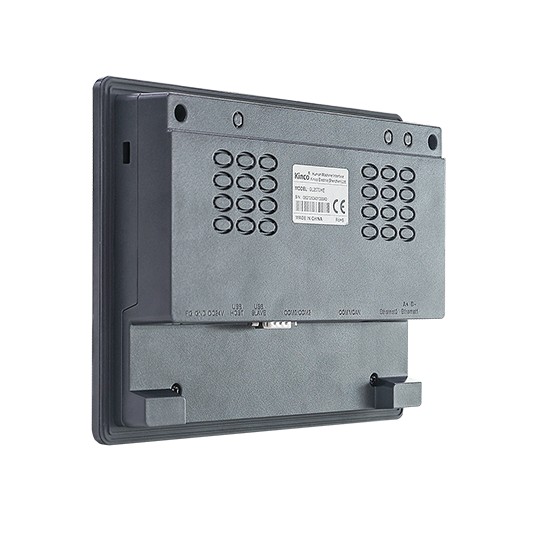

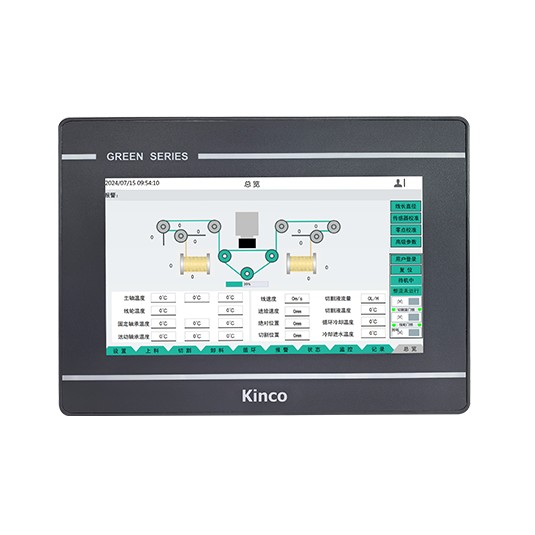

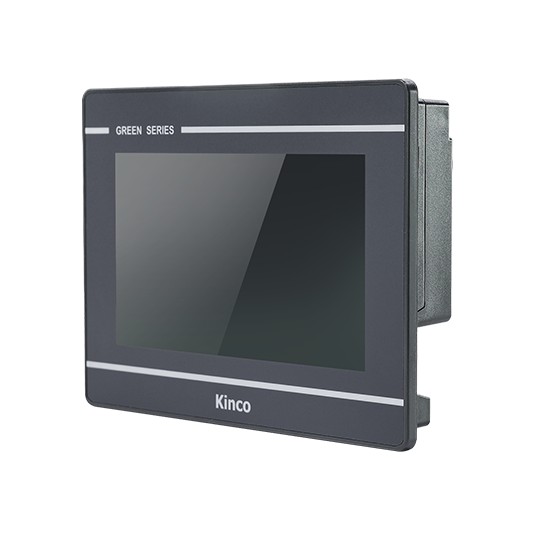

Kinco - GL2070HE Green Series HMI
Kinco - GL2070HE Green Series HMI - Image 2
Kinco - GL2070HE Green Series HMI - Image 3
Kinco - GL2070HE Green Series HMI - Image 4

Kinco – GL2070HE Green Series HMI

SKU: G2070HExxxxx

  • 7-inch 1024*600 high-definition display with 16 million true colors;
  • 85/85/85/85 wide viewing angle display;
  • Quad-core CPU with 512MB memory and 4GB flash storage;
  •  Single Ethernet port plus three serial ports, supporting dual RS485 applications;
  • Based on the latest Kinco DToolsPro configuration software;
Add to quote
Kinco G2070HE Series – versatile 7‑inch TFT HMIs (1024 × 600) with a quad‑core ARM 1.5 GHz CPU. Choose from standard Ethernet, built‑in Wi‑Fi, or dual‑Ethernet models for flexible connectivity. Each HMI features a vivid 16.77 million‑colour display, a 4‑line precision resistive touch panel, 4 GB eMMC storage, and 512 MB RAM to ensure smooth, responsive operation. Standard I/O and communication:
  • USB (Type‑C) host/slave for program download and peripherals
  • COM0 RS‑232/RS‑485/RS‑422
  • COM1 RS‑485/RS‑422
  • COM2 RS‑232
  • VPN support for remote upload/download, screen monitoring, and PLC transparent transmission
  Industrial‑grade design: IP65 front panel, 0–50 °C operating range, and easy configuration with Kinco DTools Pro. Model quick‑look: G2070HE – Single Ethernet • G2070HE‑WIFI – Ethernet + Wi‑Fi • G2070HE2 – Dual Ethernet
Model specification G2070HE G2070HE-WIFI G2070HE2
Performance specifications
Display size 7″TFT
Display area 154.21(H)x85.92(V)
Resolution 1024*600 pixel
Display color 16.77 million true colors
Display viewing angle 85/85/85/85(left/right/up/down)
Contrast ratio 800:1
Backlight LED
Brightness 450cd/m2
Backlight life 30000 hours
Touch Panel 4 line precision resistance network (surface hardness 4H)
CPU Quad-core ARM 1.5GHz
Memory 4GB eMMC+512MB RAM
RTC Built-in
Extensible memory 1 USB Host
Print port USB Host/serial port
Ethernet Lan0:10/100Mbps Lan0:10/100Mbps Lan0:10/100Mbps;
Lan1:10/100Mbps
Program download USB Slave(Type-C)/U disk/Ethernet port
Network access Ethernet Ethernet/WIFI Ethernet
Wi-Fi/wireless network band None IEEE802.11 b/g/n,802.11b:max 17dBm
802.11g:max 17dBm ,802.11n:max 17dBm		 None
VPN Support HMI remote upload, download and screen monitoring,
support PLC transparent transmission program upload, download and monitoring
Communication port COM0:RS232/RS485/RS422;COM1:RS485/RS422;COM2:RS232
Electrical specifications
Input power supply DC18V~DC28V
Rated power 7W@DC 24V
Allowable loss of power <3ms
Insulation resistance Over 50MΩ@500V DC
Pressure resistance test 500V AC 1minute
Structure specifications
PCB None
Shell material Engineering plastic
Overall dimension (mm) 204mm*150mm*37mm
Cut-out dimension (mm) 192mm*138mm
Weight(kg) 0.5Kg
Environmental specification
Working temperature 0~50°C
Working humidity 10~90%RH (Non-condensing)
Storage temperature -20~60°C
Storage humidity 10~90%RH (Non-condensing)
Sine vibration test 10~500Hz,30m/s², X,Y,Z direction/hour
Cooling mode Natural air cooling
Product certification
Panel protection grade Conforming to IP65 requirements
CE certificate EN61000-6-4:2007+A1:2011, EN61000-6-2:2005)
Software
Configuration software Kinco Dtools Pro
