SKU: GT100E2-xxxx
Introducing the Kinco GT100E2 (and variants GT100E2-4G, GT100E2-WIFI, GT100E2-CAN), a versatile Human Machine Interface (HMI) from the reliable GT Series, designed for robust industrial automation and control applications.

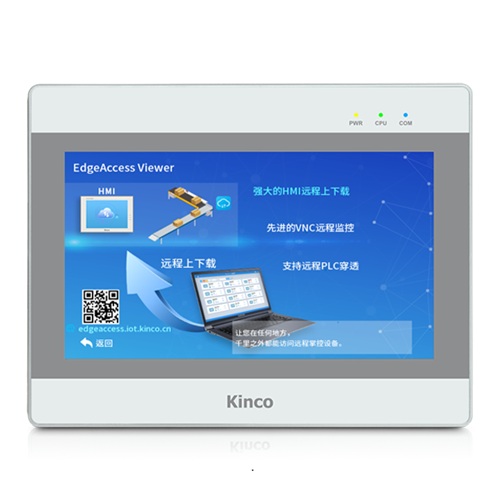

Experience clear visualization on its vibrant 10.1-inch TFT display, boasting a 1024×600 pixel resolution, 16.7 million colors, and a bright 350cd/m² LED backlight. The responsive 4-wire precision resistive touch panel ensures accurate operator interaction.

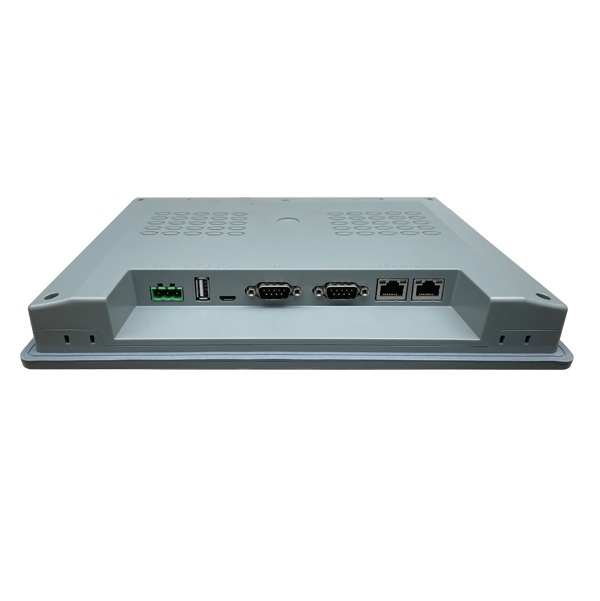

Under the hood, an ARM RISC 32Bit 800MHz CPU coupled with 256MB Flash and 256MB RAM delivers smooth performance for your HMI tasks. The GT100E2 offers extensive connectivity options including dual 10/100M adaptable Ethernet ports for network integration, USB Host for external storage or peripherals like printers, and versatile serial communication (COM0:RS232/RS485/RS422; COM1:RS485/RS422; COM2:RS232).
Built to last, the HMI features an LCD life of over 30,000 hours and is housed in durable engineering plastics. It’s designed for demanding environments with an operating temperature range of 0-50°C, IP65 panel protection (conforming to certification), and CE certification, ensuring reliability and compliance.
Program downloads are conveniently managed via U Disk or Ethernet, and it’s configured using Kinco DTools V3.5.2 and above. The built-in RTC with 32KB memory further enhances its functionality.
Choose the Kinco GT100E2 series for a dependable, feature-rich, and well-connected HMI solution to optimize your industrial processes.
| Performance Specification | |
|---|---|
| Display size | 10.1″ TFT |
| Resolution | 1024×600 px |
| Display color | 16.7M |
| Backlight | LED |
| Luminance | 350cd/m² |
| LCD life | More than 30000 hours |
| Touch panel | 4-wire precision resistance network (surface hardness 4H) |
| CPU | ARM RISC 32Bit 800MHz |
| Memory | 256MB Flash Memory + 256MB Memory |
| RTC | Built-in RTC+32KB |
| External storage | USB Host |
| Printer port | USB Host/Serial port |
| Ethernet | 2*10/100M adaptable Ethernet interface |
| Program download | U Disk/Ethernet |
| Communication | COM0:RS232/RS485/RS422; COM1:RS485/RS422; COM2:RS232 |
| Electrical Specification | |
| Input | DC10.8V~DC28V |
| Power | 5W@24VDC |
| Allowable loss of power | <3ms |
| Insulation resistance | Over than 50MΩ@500V DC |
| Hi-pot test | 500V AC 1 minute |
| Structure specification | |
| Shell material | Engineering plastics |
| Shape size | 271*213*38(mm) |
| Cutout size | 260*202(mm) |
| Weight | 1.1Kg |
| Environmental Specification | |
| Working temperature | 0~50°C |
| Working humidity | 10~90%RH (non-condensing) |
| Storage temperature | -20~60°C |
| Storage humidity | 10~90%RH (non-condensing) |
| Sine vibration test | 10~500Hz, 30m/s², X,Y,Z direction/hour |
| Cooling mode | Natural air cooling |
| Product Certification | |
| Panel protection grade | Conforming to IP65 certification |
| CE certification | Conforming to CE certification |
| Software | |
| Configuration software | Kinco DTools V3.5.2 and above version |
